90W Hood Solar Panel for Mercedes Sprinter 3rd Gen (2019-Present)

90W Hood Solar Panel for Mercedes Sprinter 3rd Gen (2019-present)

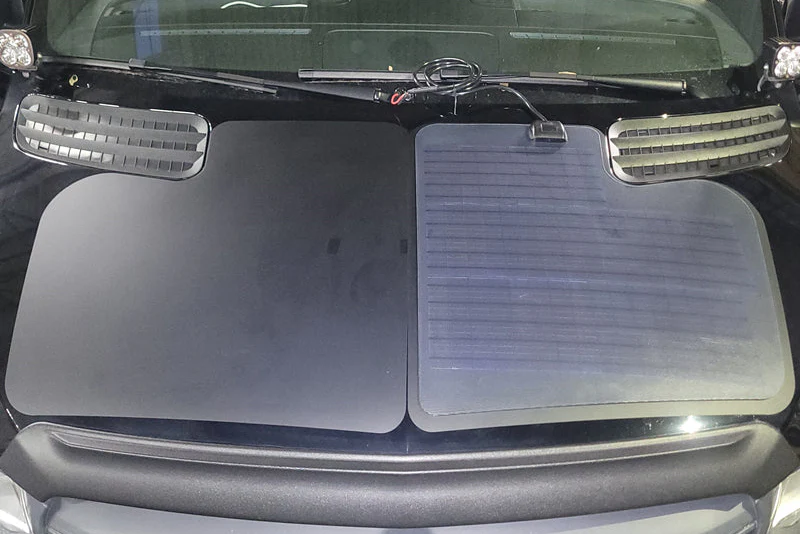

This flexible solar panel mounts to the hood of your van. Charge the vehicle battery, leisure battery, or power station (Ecoflow, Jackery, Goal Zero, etc) during daylight. Keep your fridges, dash cam, lighting, phones, etc., charged without starting your engine. Do not worry about a dead battery while camping/off the grid. Perfectly shaped for the 2019 - Present Sprinter van hood. Easy to install plug-and-play wiring. Covered by a 24-month workmanship warranty.

Benefits:

1. Keep your vehicle or auxiliary battery topped up at all times. Ideal for overlanders who want to power devices worry-free without draining batteries.
2. Keep your power station charged. Comes with standard connectors and uses adaptors (buy separately) to charge for most of the power stations on the market.
3. Decreased hood glare. The ETFE film surface eliminates light reflection, reducing glare while driving.
4. Protect and extend battery life. Batteries usually hit only 60% charge with daily driving, and if parked for 2-3 weeks, starting becomes unreliable, especially in summer. Plus, they degrade within 2-3 years. This hood solar panel maintains battery charge, tackling these issues.
5. Convenience and space-saving. Attaches directly to the vehicle's hood; no roof rack is needed. Unlike portable solar panels that eat up cargo space with setup and storage, it's a plug-and-play system for easy installation.
6. Optional custom-fitted vinyl decal. A vinyl decal between the solar panel and hood is highly recommended. It protects the vehicle paint from damage.

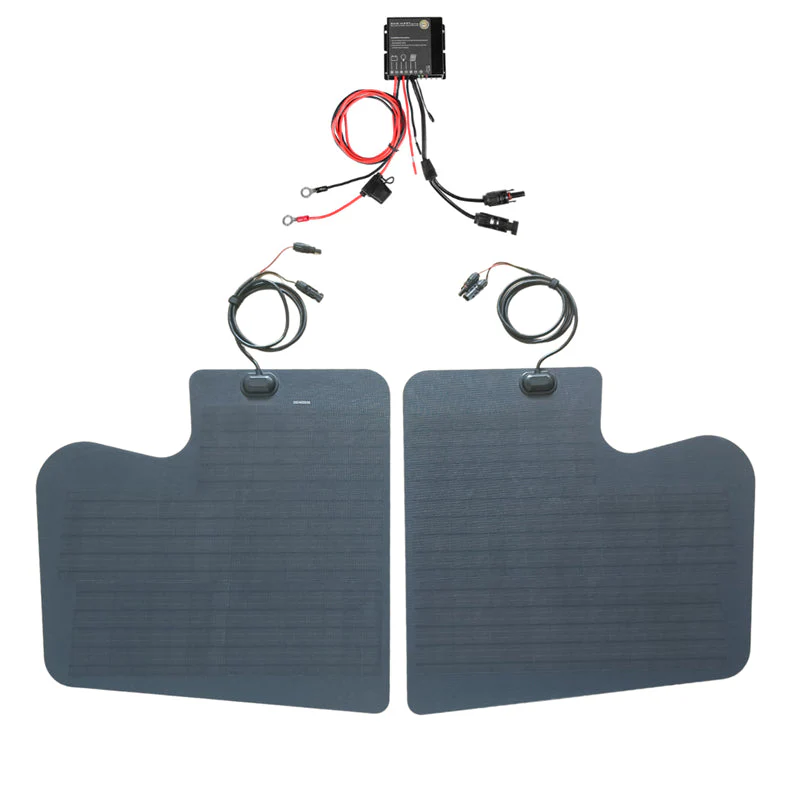

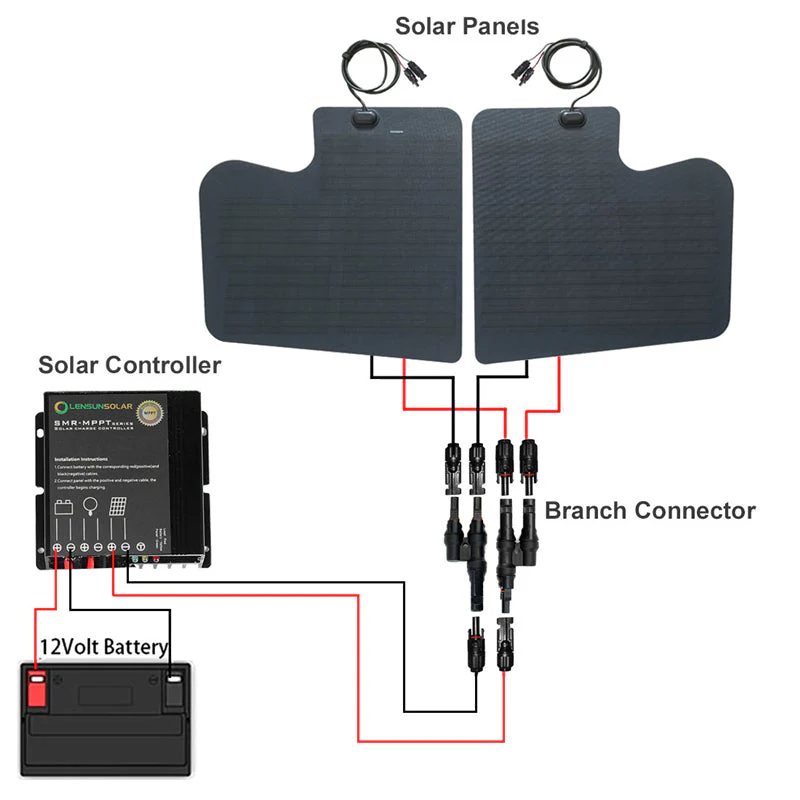

7. Easy to install plug-and-play wiring. The optional plug-and-play 10A Waterproof MPPT solar controller comes pre-wired with fuses, terminals, and connectors. It features advanced MPPT control with intelligent protection against risks like reverse polarity and overcharging. Compatible with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries.

Features:

1. Solar cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance and is heat, corrosion, and UV resistant.
3. Durability: Cutting-edge tech and robust materials ensure resilience against snow, ice, mud, rocks, etc.
4. Ultrathin & Lightweight: At only 3mm/0.12 inches thick, it is lightweight (60% less than conventional solar panels).

Panel Specifications:

Peak Power: 90W
Solar Cell Efficiency: 23.5%
Maximum Power Voltage: 21.5V
Maximum Power Current: 4.18A
Open Circuit Voltage: 23.5V
Short Circuit Current: 4.6A
Power Allowance Range: +/-3%
Maximum System Voltage: 500V
Net Weight: 5.5 lb
J-Box: IP 68 rated with 5ft cables

MPPT Specifications:

Battery Type: Gel, AGM, Liquid, Lithium, Flooded
System Voltage: 12V
Max Charging Current: 10A
Max Input Solar Panel: 130W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 45V
Communication: Bluetooth
Max Tracking Efficiency: 99.9%
Max Charging Conversion: 96.5%
Self Consumption: 6mA
Charging Voltage Target: 10-17V(Programmable, Lithuim)
Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)
Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)
Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)
Dimensions: 3.4x3.2x0.9inch/86x81x23mm
Weight: 0.8lbs
Maximum Terminals Wire Size: 10AWG(4mm²)
Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.

Included:

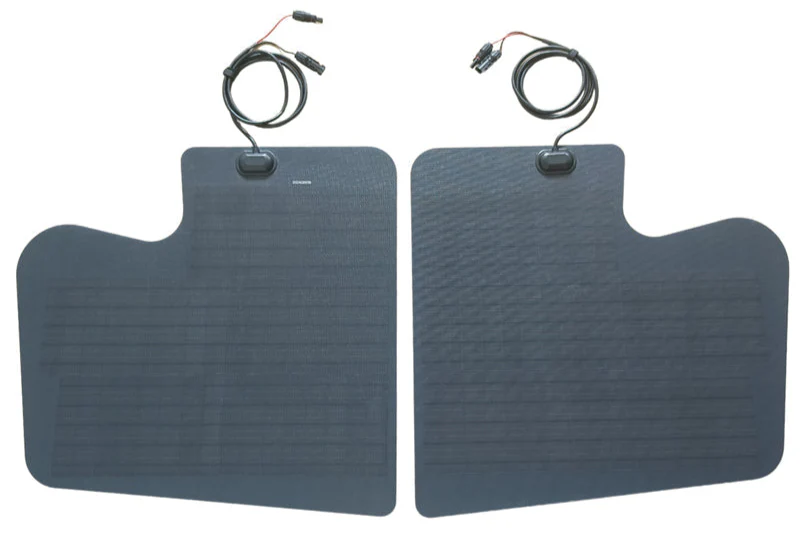

1 x 90w hood solar panel

Optional:

1 x vinyl decal (optional)
1 x 10A waterproof MPPT solar controller (optional)

FAQ

1. How do I install the 90W Hood Solar Panel on my Mercedes Sprinter 3rd Gen?
The solar panel is designed to fit perfectly on the 2019–present Sprinter hood. Installation involves attaching the panel with either adhesive or optional vinyl decal protection, then plugging into your battery system or optional MPPT solar controller. It’s a straightforward, plug-and-play process requiring minimal tools.

2. Do I need a roof rack for this hood-mounted solar panel?
No, you don’t need a roof rack. The 90W Sprinter Hood Solar Panel sits directly on your van’s hood, saving space and eliminating the hassle of rooftop installations.

3. Will the solar panel reduce hood glare on my Mercedes Sprinter?
Yes. The panel features a premium ETFE film surface that helps minimize light reflection, ensuring reduced glare while you’re driving.

4. Can the Hood Solar Panel charge both the vehicle and auxiliary batteries?
Absolutely. You can connect the solar panel to your main battery or a separate leisure battery/power station (e.g., Ecoflow, Jackery, or Goal Zero) to keep devices and appliances powered off-grid.

5. Is a vinyl decal necessary for installation?
A custom-fitted vinyl decal is highly recommended, as it protects your vehicle’s paint and provides a solid surface for adhesion, ensuring durability and preserving resale value.

6. Does the panel perform well in extreme weather conditions?
Yes. The cutting-edge materials and robust construction make it resistant to high winds, heavy snow, hail, and off-road debris, ensuring long-term reliability in various climates.

7. When should I consider using the optional 10A MPPT solar controller?
Use the MPPT controller if you need advanced battery protection, better efficiency, and Bluetooth monitoring. It’s designed for various battery types (Gel, AGM, Lithium, etc.) and maximizes solar power harvest.
