Heavy Duty Folding Bracket for Van Countertop Extensions
Overview

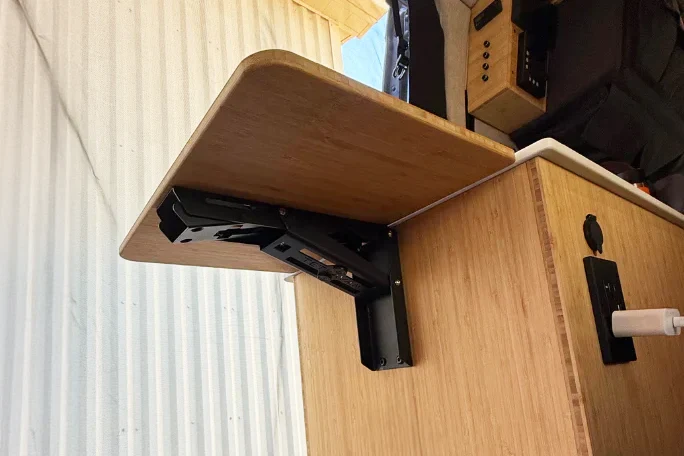

Build a fold-down countertop, workstation, compact table, or similar interior extension that actually feels solid. The Tetravan MOAB Heavy Duty Folding Bracket is designed for van, RV, and mobile build interiors where ordinary folding brackets can rattle, flex, or feel unreliable on the road. This heavy-duty fold-down bracket uses gas-strut reinforcement, a magnetic latching system, and a spring-loaded release handle to create a more stable, road-ready solution for compact spaces. Use it for van galley counter extensions, work surfaces, fold-down tables, or other custom interior projects where strength and clean stowage matter.
This bracket is rated to hold 95 lb for long-term use. It has been stress-tested to 270 lb, but the recommended long-term load rating is 95 lb.
Key Features
- Heavy-duty folding bracket for van, RV, and compact interior builds
- Designed for fold-down countertops, workstations, and similar extensions
- 3" wide bracket body
- One bracket supports up to a 20" wide extension
- Rated to hold 95 lb for long-term use (stress-tested to 270 lb)
- Gas-strut reinforcement improves support and control
- Magnetic latching system helps reduce rattle and vibration
- Spring-loaded release handle for setup and stowing
- All installation hardware included
- Free Shipping to the Lower 48 States
Resources
Technical Specs
Technical Specs
| Spec | Details |
|---|---|
| Width | 3 in |
| Length | 11.75 in |
| Height | 7.5 in |

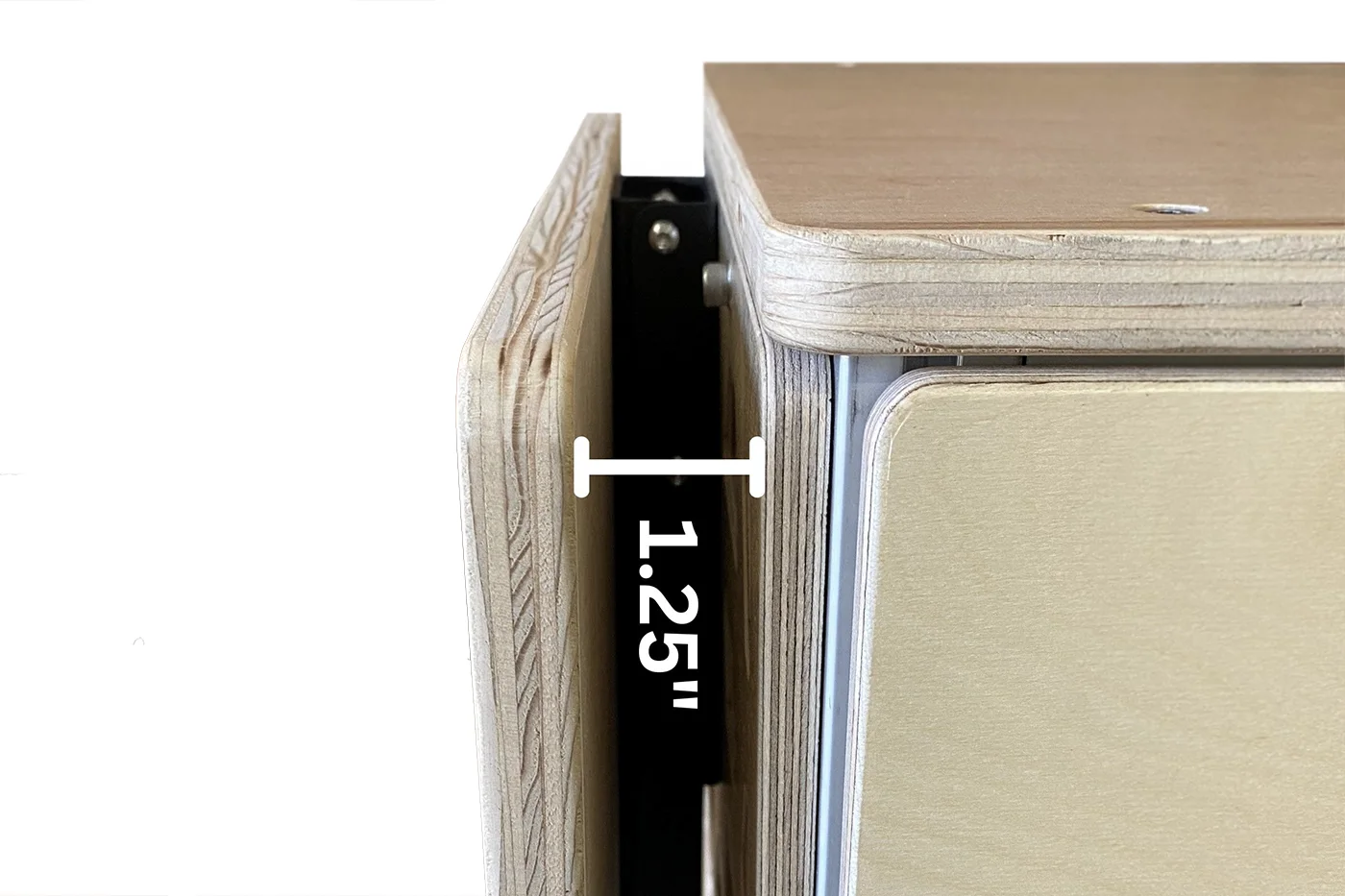

| Folded Depth | 1.375 in top, 1.625 in bottom |
| Rated Capacity | 95 lb |
| Stress-Tested Capacity | 270 lb |
| Recommended Long-Term Load Limit | 95 lb |
| Extension Size Guidance | One bracket can support up to a 20" wide extension |
| Latch Type | Magnetic latching system |
| Support Type | Gas-strut reinforcement |
| Release | Spring-loaded release handle |
| Approximate Product Weight | 1361 g, about 3 lb |
What Is Included
| Item | QTY Included |
|---|---|
| MOAB Heavy Duty Folding Bracket | 1 |
| Carriage bolts | 4 |
| Washers | 4 |
| Nyloc nuts | 4 |
| Black 3/4 in wood screws | 6 |
Frequently Asked Questions (click to expand)
It is used to support fold-down countertops, compact tables, workstations, and similar interior extensions in vans, RVs, and other mobile builds.
This bracket is built for heavier-duty mobile use, with gas-strut reinforcement, a magnetic latching system, and a spring-loaded release handle to reduce flex and rattle compared with lighter hardware.
The recommended long-term load rating is 95 lb.
The bracket has been stress-tested to 270 lb, but the recommended long-term working load is 95 lb.
One bracket can support up to a 20 in wide extension.
The bracket includes a magnetic latching system designed to help reduce rattle and vibration while traveling.
The bracket uses a spring-loaded release handle for setup and stowing.
The bracket includes 4 carriage bolts, 4 washers, 4 nyloc nuts, and 6 black 3/4 in wood screws.
Yes. It can be used for fold-down counters, compact workstations, tables, and similar custom interior projects when installed into an appropriate structure.

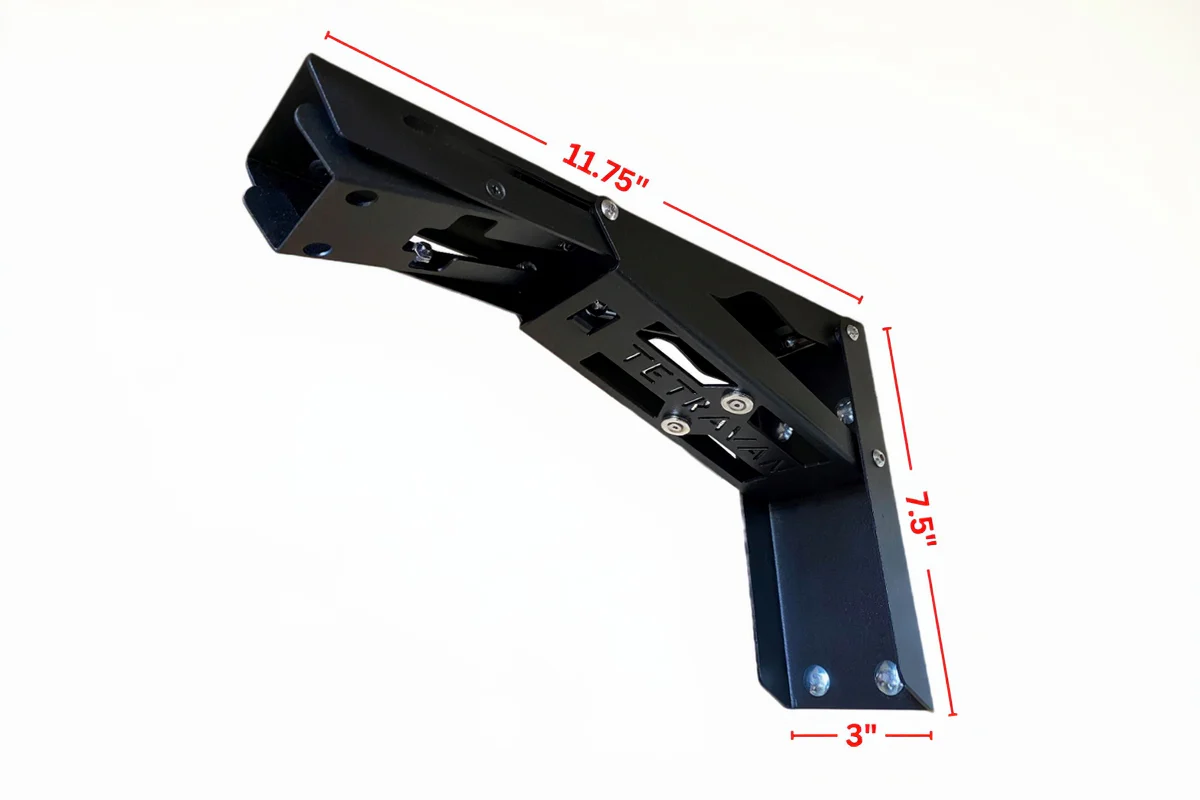

The bracket is 3 in wide, 11.75 in long, and 7.5 in tall. Folded depth is 1.375 in at the top and 1.625 in at the bottom.
