Victron MultiPlus 120V Inverter Charger
Overview
The Victron Energy MultiPlus is a combined inverter and battery charger for 120V AC systems. It integrates a true sine wave inverter, adaptive charging, and a high speed AC transfer switch in one enclosure. Select the voltage, continuous output power, and UL status that matches your build.
Key Features
- True sine wave inverter
- Adaptive charge technology
- PowerAssist and PowerControl
- High speed AC transfer switching for seamless source changes
- VE.Bus communication port for parallel operation, remote monitoring, and system integration
Match the MultiPlus DC voltage to your battery bank, and confirm UL requirements for your installation before ordering.
Variant Specs
The specs below summarize key electrical characteristics for the exact variants listed on this product page. For full details, refer to the manufacturer's documentation for the specific part number.
- 48v Datasheet
- 2kva & 3kva Datasheet
- 800-3000kva Data Sheet
Technical Specs
| Spec | Details |
|---|---|
| AC output | 120VAC ± 2%, 60Hz ± 0.1% |
| AC input range (charger) | 95 to 140VAC |
| System integration | VE.Bus communication port for parallel and three phase operation, remote monitoring, and system integration |
Variant Summary
| Spec | Details |
|---|---|
| 12V 500VA, PMP121500100 | 430W at 25°C, 20A charger, 16A transfer switch, DC input 9.5 to 17V |

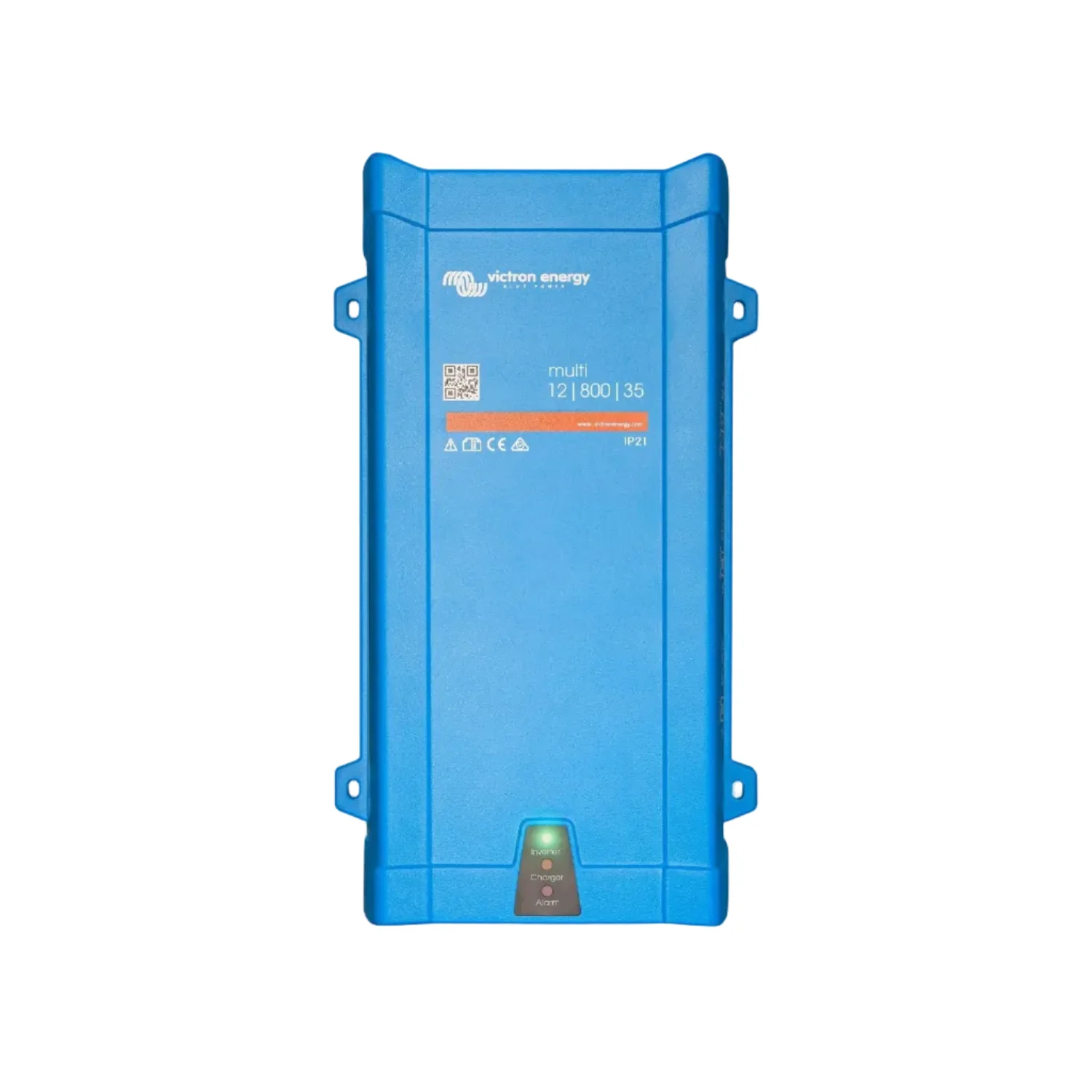

| 12V 800VA, PMP121800100 | 700W at 25°C, 35A charger, 16A transfer switch, DC input 9.5 to 17V |
| 12V 1200VA, PMP122120100 | 1000W at 25°C, 50A charger, 16A transfer switch, DC input 9.5 to 17V |

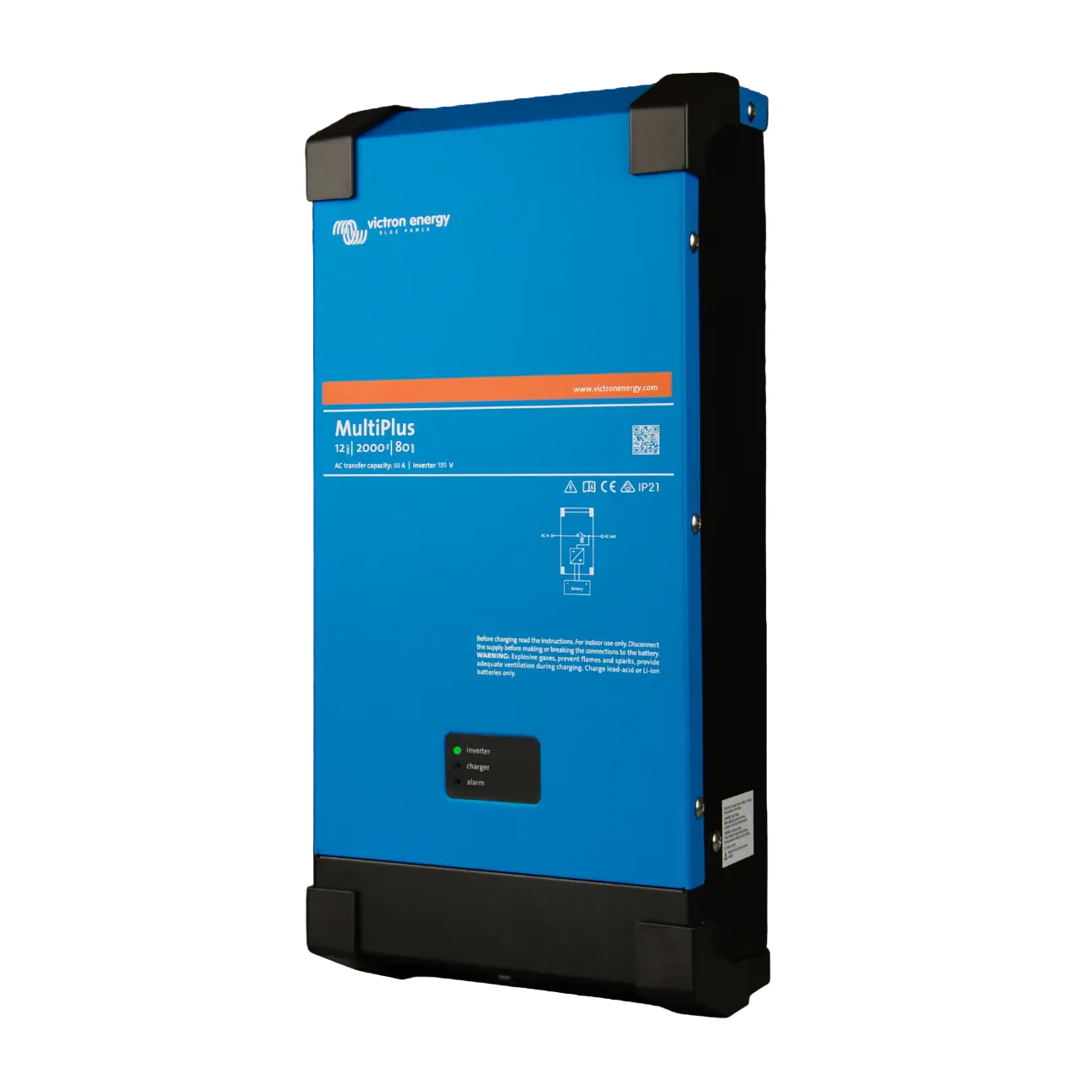

| 12V 2000VA, PMP122200102 | 1600W at 25°C, 80A charger, 50A transfer switch, DC input 9.5 to 17V, peak power 4000W |
| 24V 2000VA, PMP242200102 | 1600W at 25°C, 50A charger, 50A transfer switch, DC input 19 to 33V, peak power 4000W |
| 24V 2000VA, PMP242200100 | 1600W at 25°C, 50A charger, 50A transfer switch, DC input 19 to 33V, peak power 4000W |

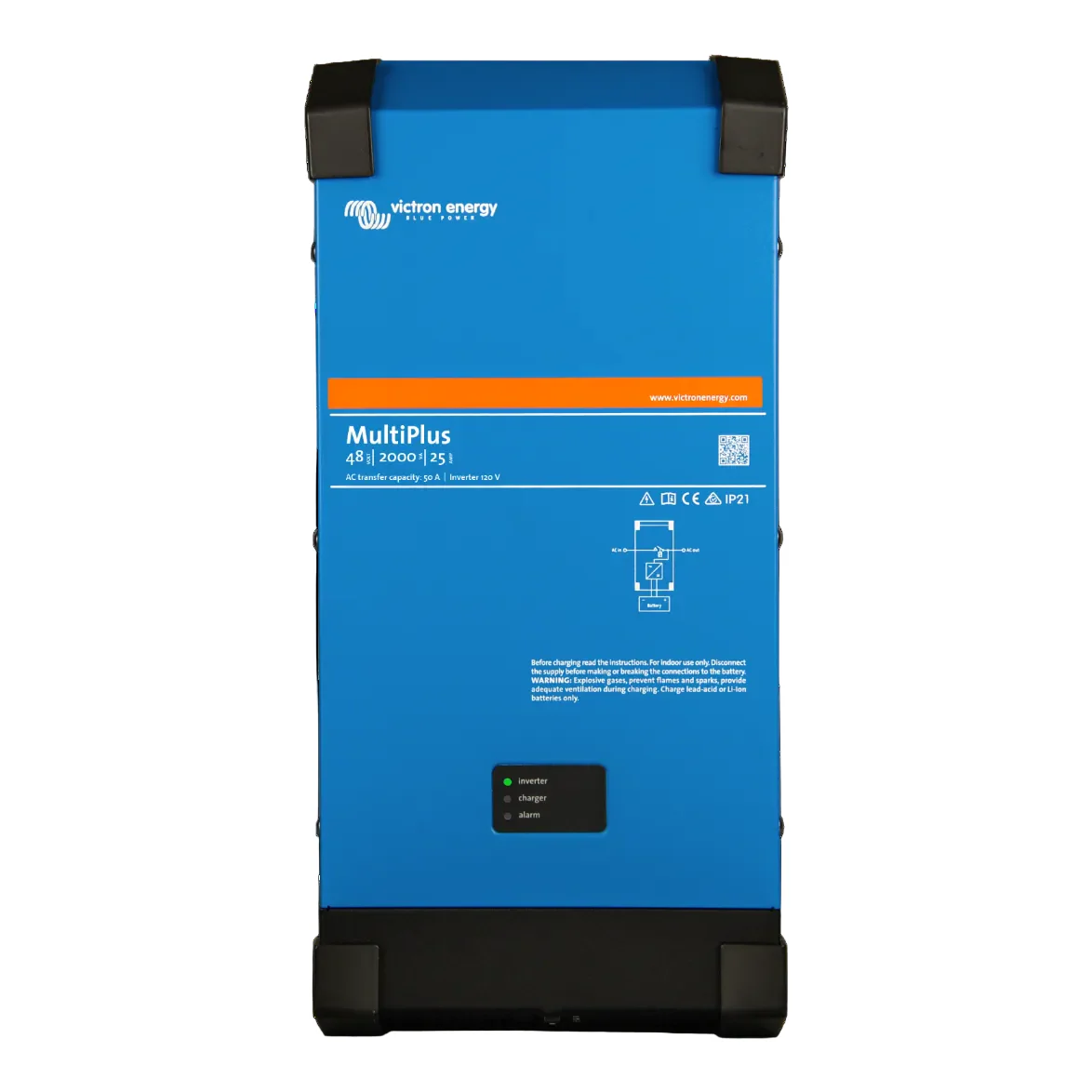

| 48V 2000VA, PMP482200100 | 1600W at 25°C, 25A charger, 50A transfer switch, DC input 38 to 66V, peak power 4000W |

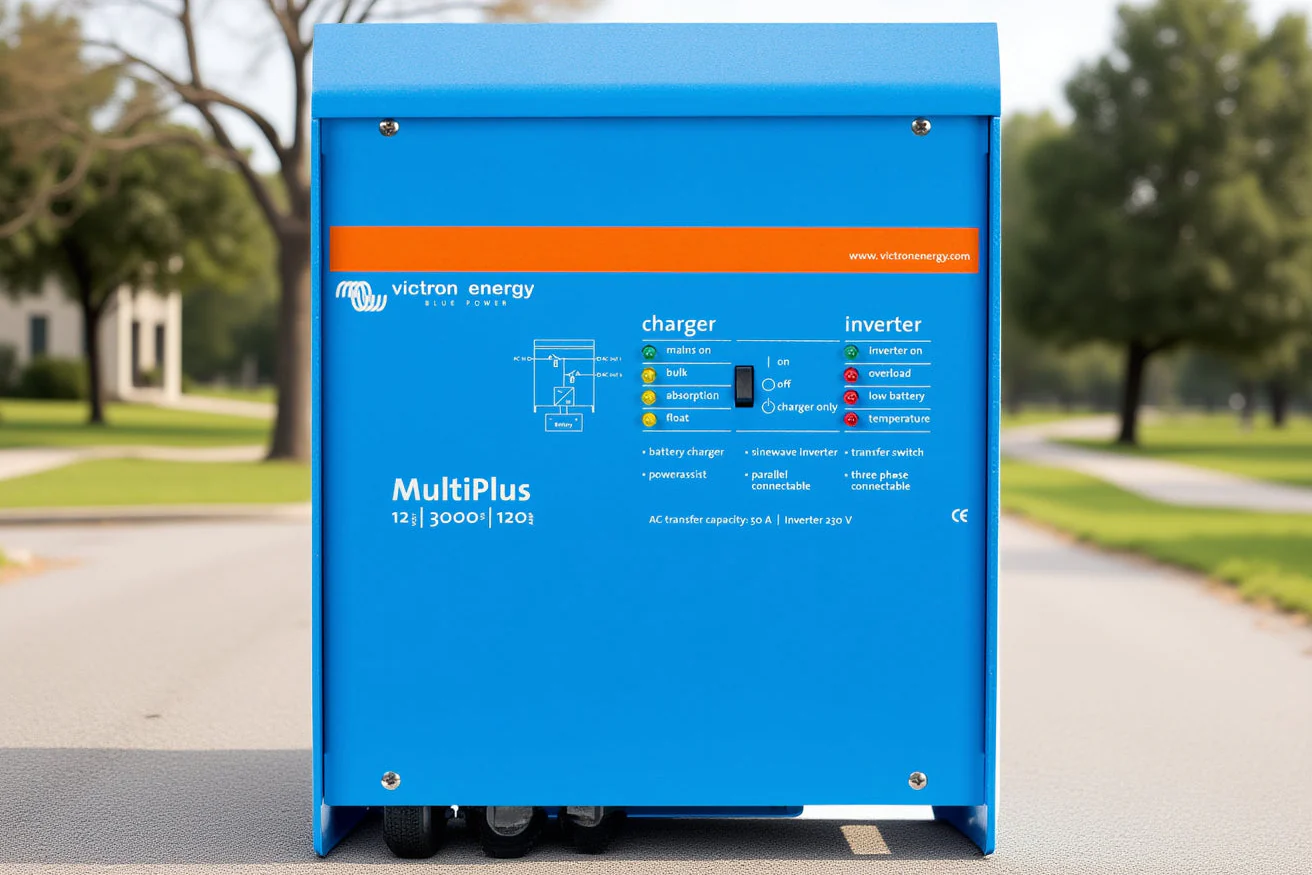

| 12V 3000VA, PMP122301102 | 2400W at 25°C, 120A charger, 50A transfer switch, DC input 9.5 to 17V, peak power 6000W |

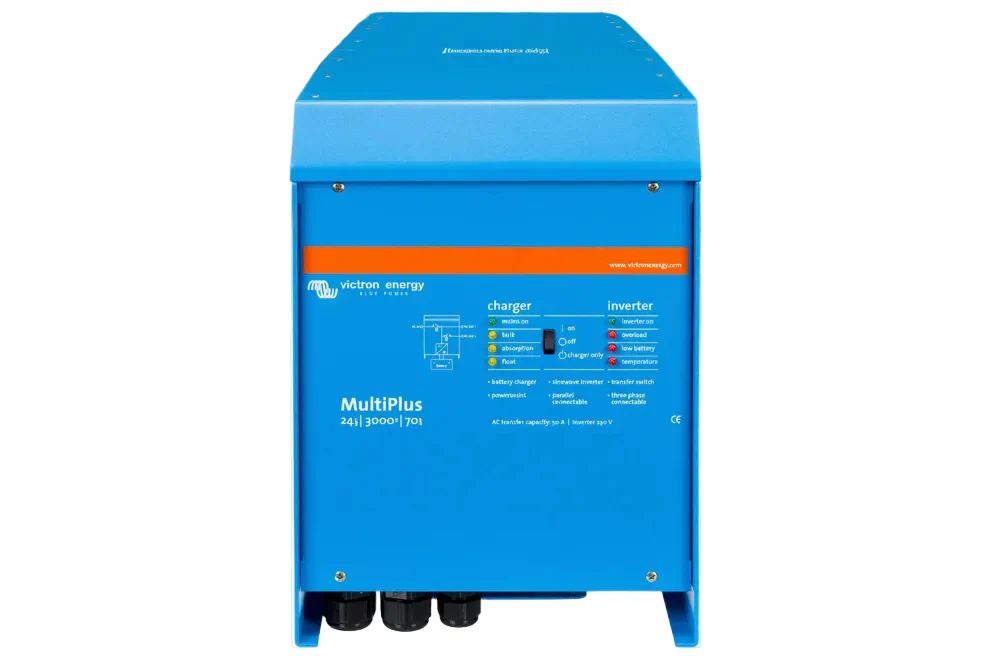

| 24V 3000VA, PMP242301102 | 2400W at 25°C, 70A charger, 50A transfer switch, DC input 19 to 33V, peak power 6000W |
Frequently Asked Questions (click to expand)
MultiPlus is a combined inverter and battery charger designed to provide 120V AC power from a battery bank, and to charge the batteries when shore power or a generator is available.
Choose the MultiPlus that matches your battery bank voltage. For example, a 24V battery bank requires a 24V MultiPlus.
Select a rating that covers your expected continuous loads and allows headroom for starting surges. If you share a load list, the right size can be estimated.
The transfer switch rating indicates the maximum AC current that can pass through from an external AC source when available. Ratings vary by model, for example 16A on 500VA to 1200VA models and 50A on 2000VA and 3000VA models.
PowerAssist allows the MultiPlus to supplement a limited external AC source with inverter power from the batteries when loads exceed the available shore or generator capacity.
This store offers both UL and non UL variants for select models. If you need inspection compliance, confirm the required listing for your jurisdiction and select the matching variant.
Included items are not confirmed from the provided sources. This listing assumes the main MultiPlus unit only unless you provide an official packing list.
MultiPlus units support parallel operation. Certain configurations can be used for split phase setups when stacked, and system design should follow manufacturer documentation.
