NomadicArk 700 x 500 Van and RV Skylight Roof Hatch with Blind and Bug Screen
Overview

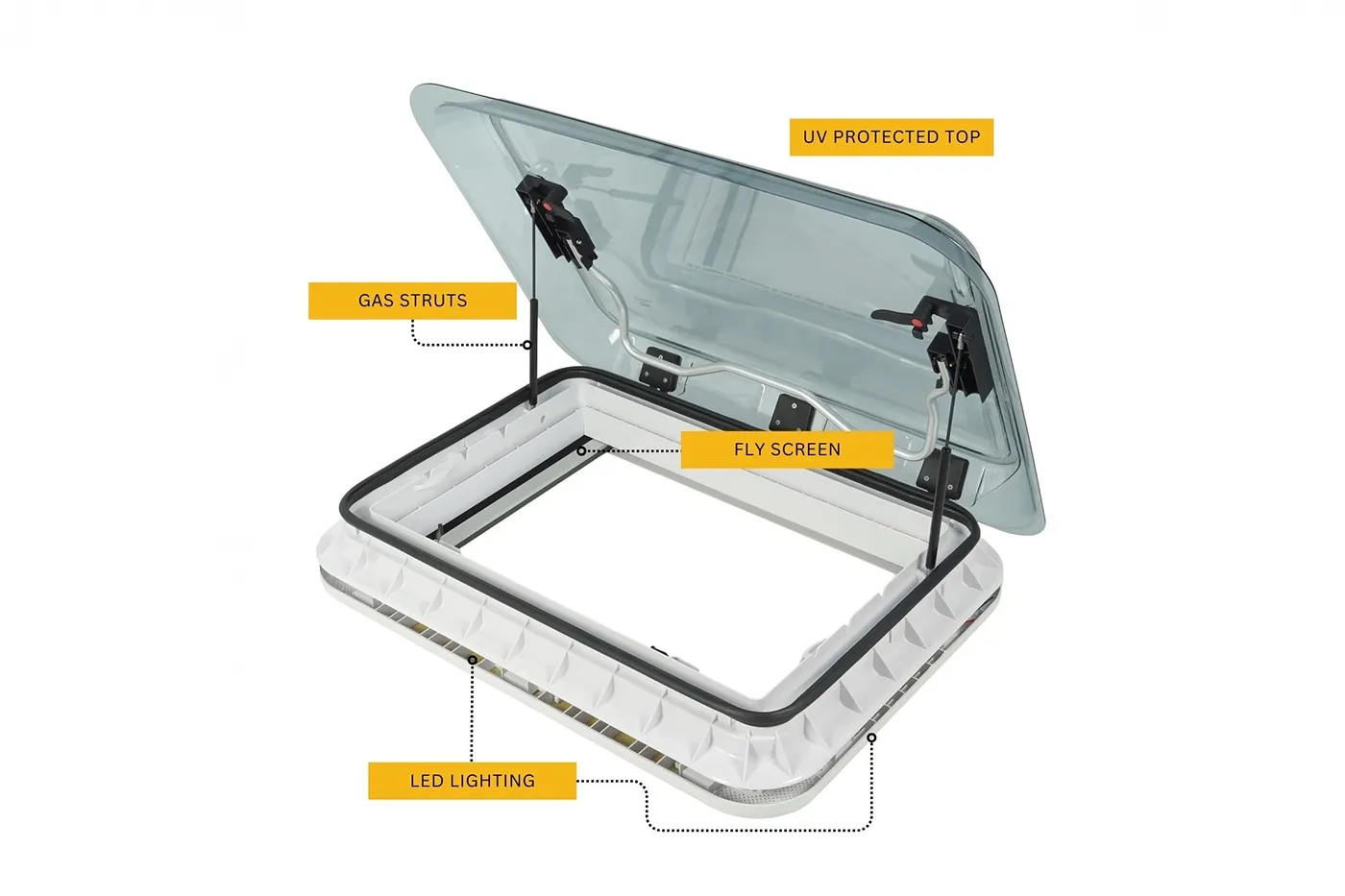

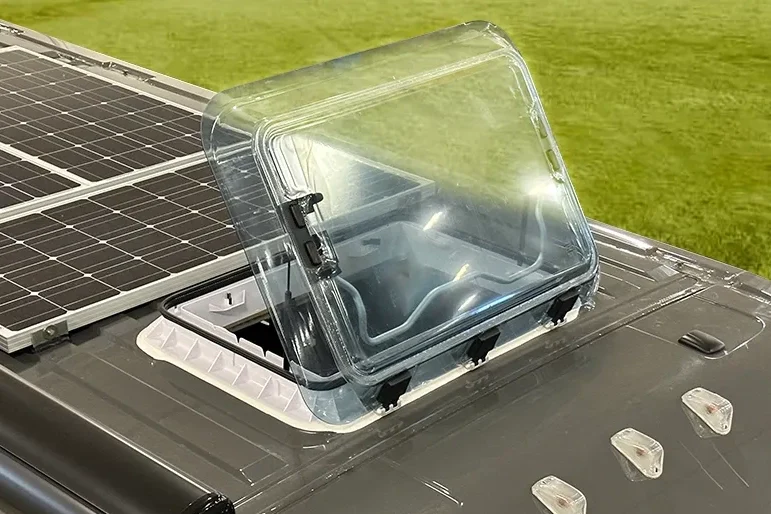

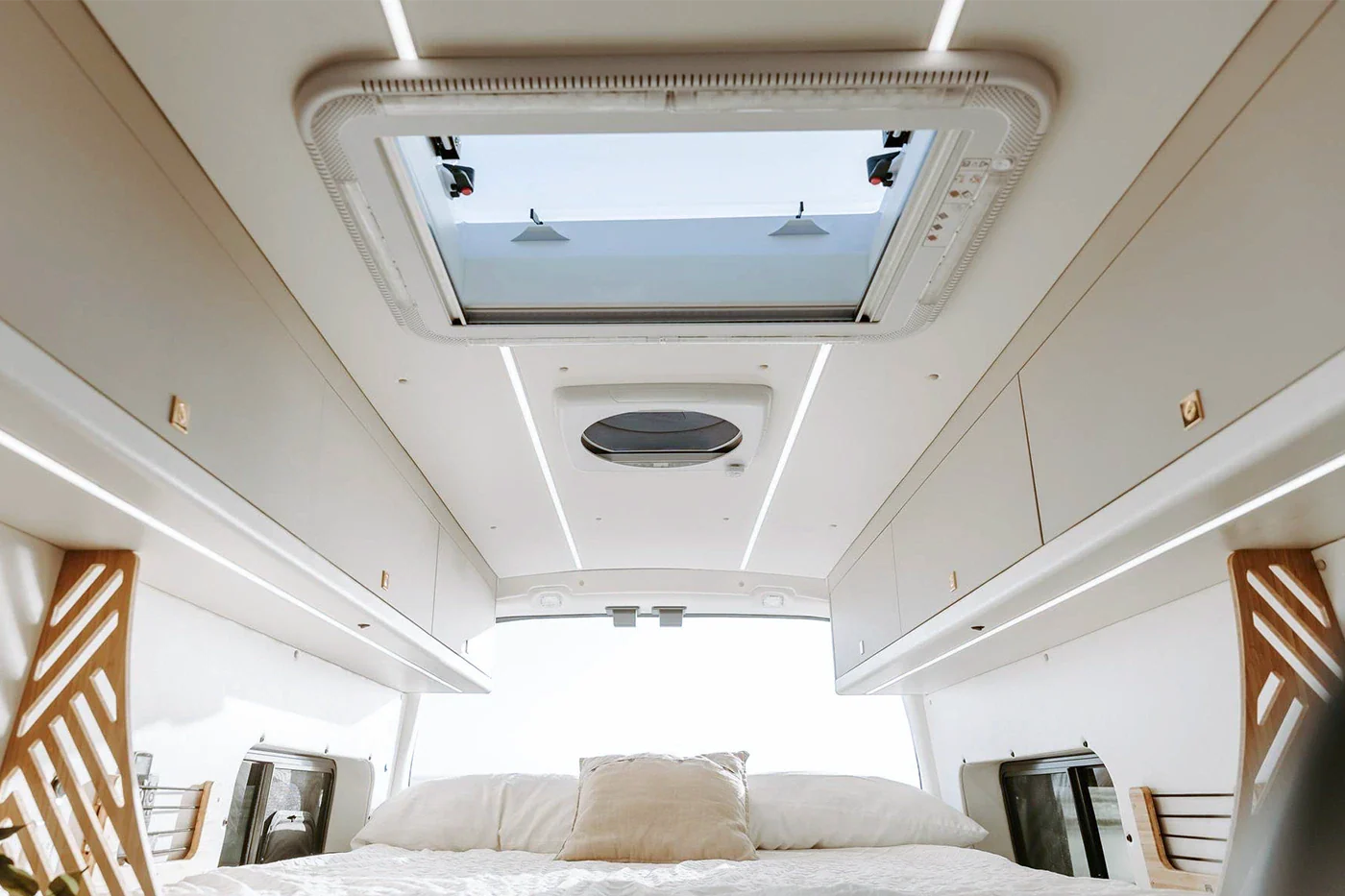

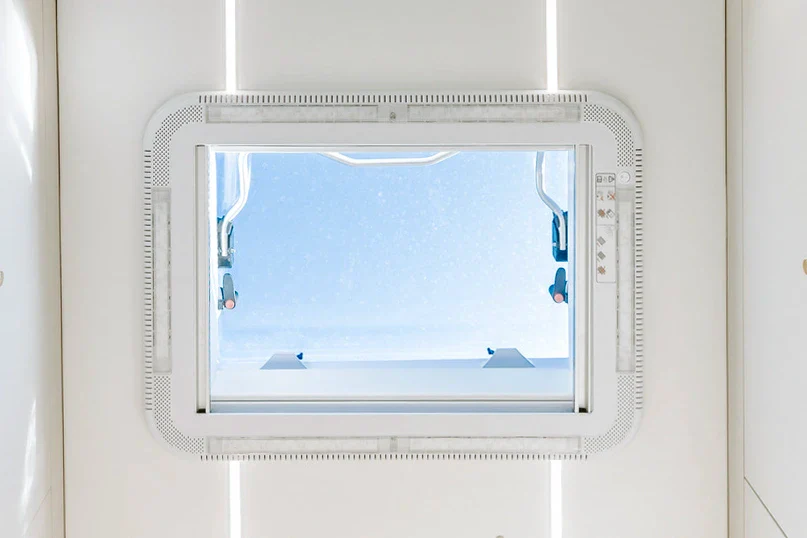

The NomadicArk 700 x 500mm Van and RV Skylight Roof Hatch is a large roof window designed for vans, RVs, campers, caravans, and motorhomes. It adds natural light, ventilation, and a cleaner finished roof opening while keeping operation simple with assisted gas struts. This skylight uses a double-glazed acrylic dome, ASA inner and outer frame construction, integrated ventilation, a pleated blind, and a pleated bug screen. Choose the LED version for built-in 12V lighting, or choose the non-lighted version when you want the same skylight without integrated LEDs.
This skylight is commonly referred to as a 700 x 500mm model. That size refers to the roof opening class. The manual lists the cutout at 702 x 502 mm, about 27.6 x 19.8 in, while the exterior footprint is approximately 836 x 646 mm, about 32.9 x 25.4 in.
Key Features
- Large roof hatch for vans, RVs, campers, and tiny homes
- Cutout size is 702 x 502 mm, about 27.6 x 19.8 in
- Overall exterior footprint is 836 x 646 mm, about 32.9 x 25.4 in

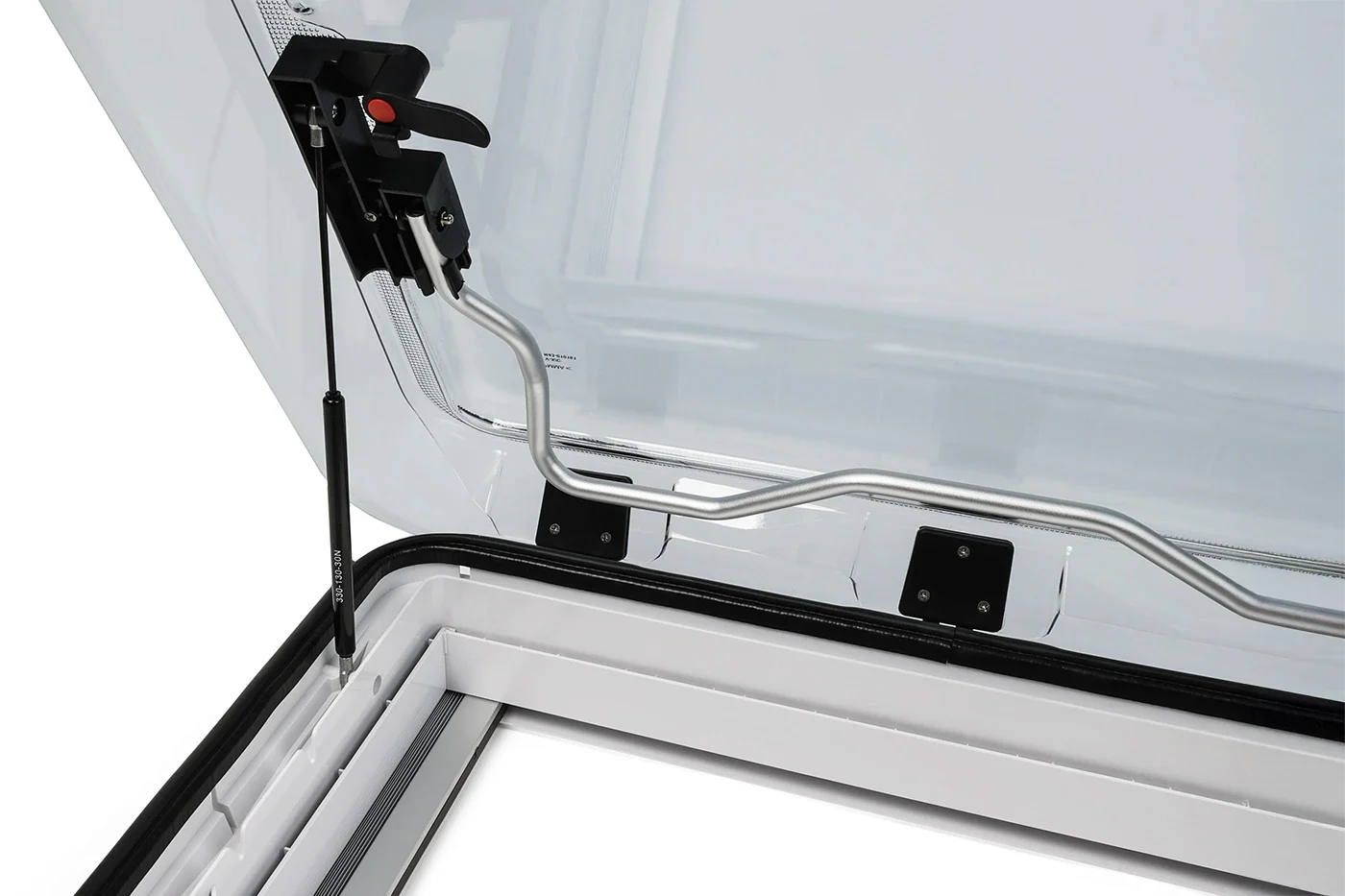

- Easy manual operation with gas struts
- Double-glazed acrylic dome top
- Long-life ASA frame material
- Integrated ventilation for airflow control
- Maximum opening angle of 60 degrees

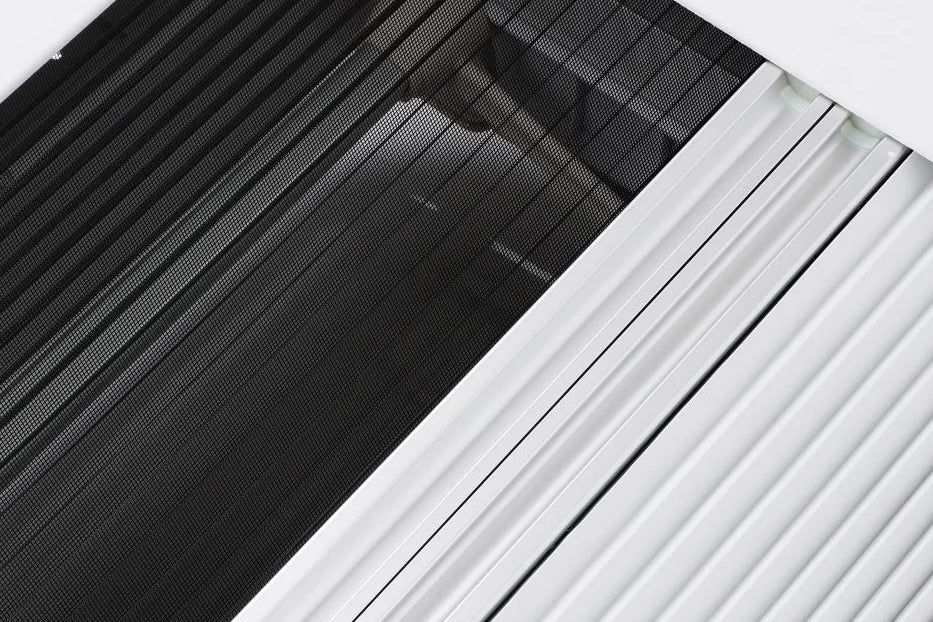

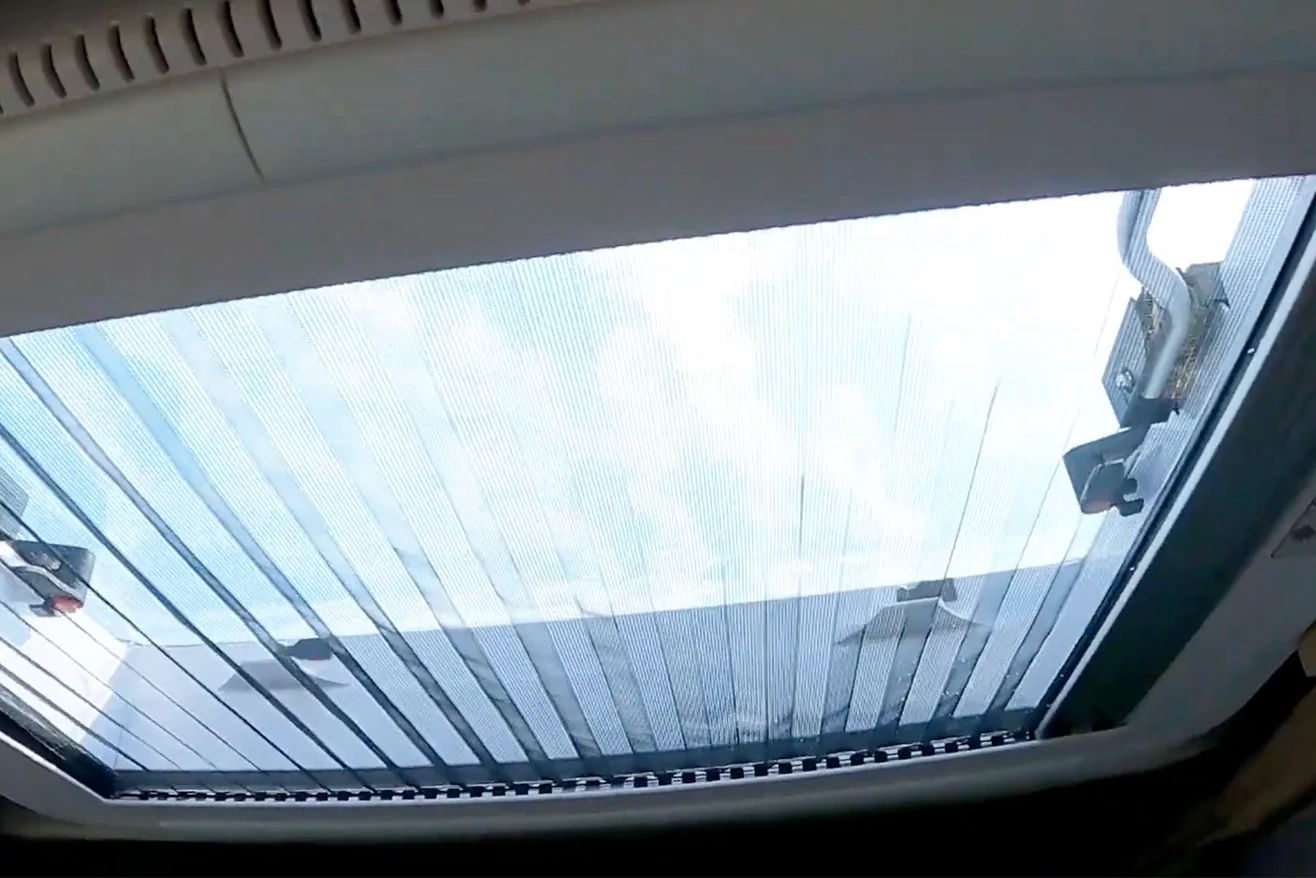

- Pleated blind and pleated bug screen included

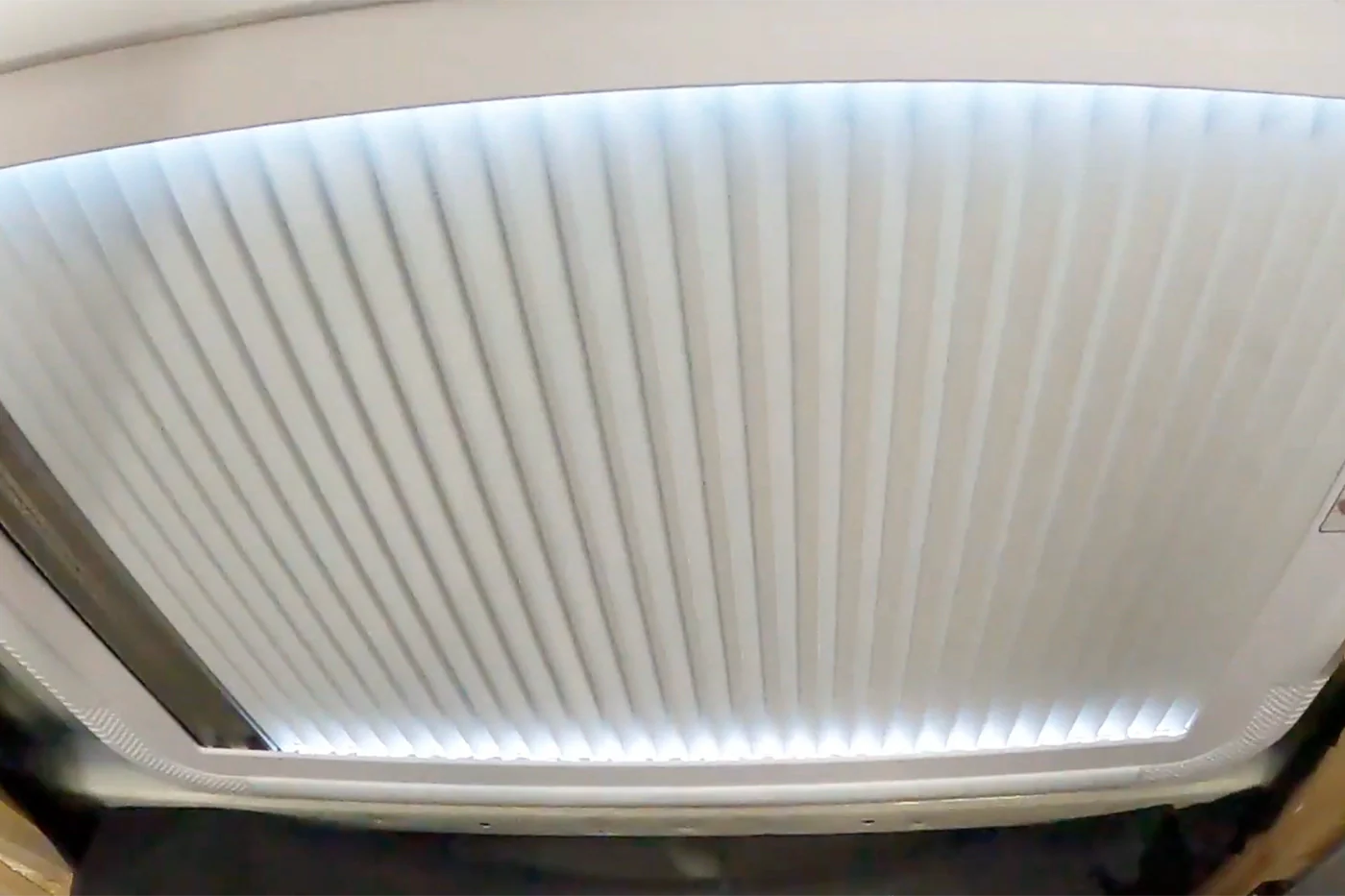

- Available with built-in 12V LED lighting or without lights
- Fully E-marked and DOT certified
LED or Non-LED
Both variants use the same skylight platform. The non-LED version is the same except it does not include integrated LEDs.

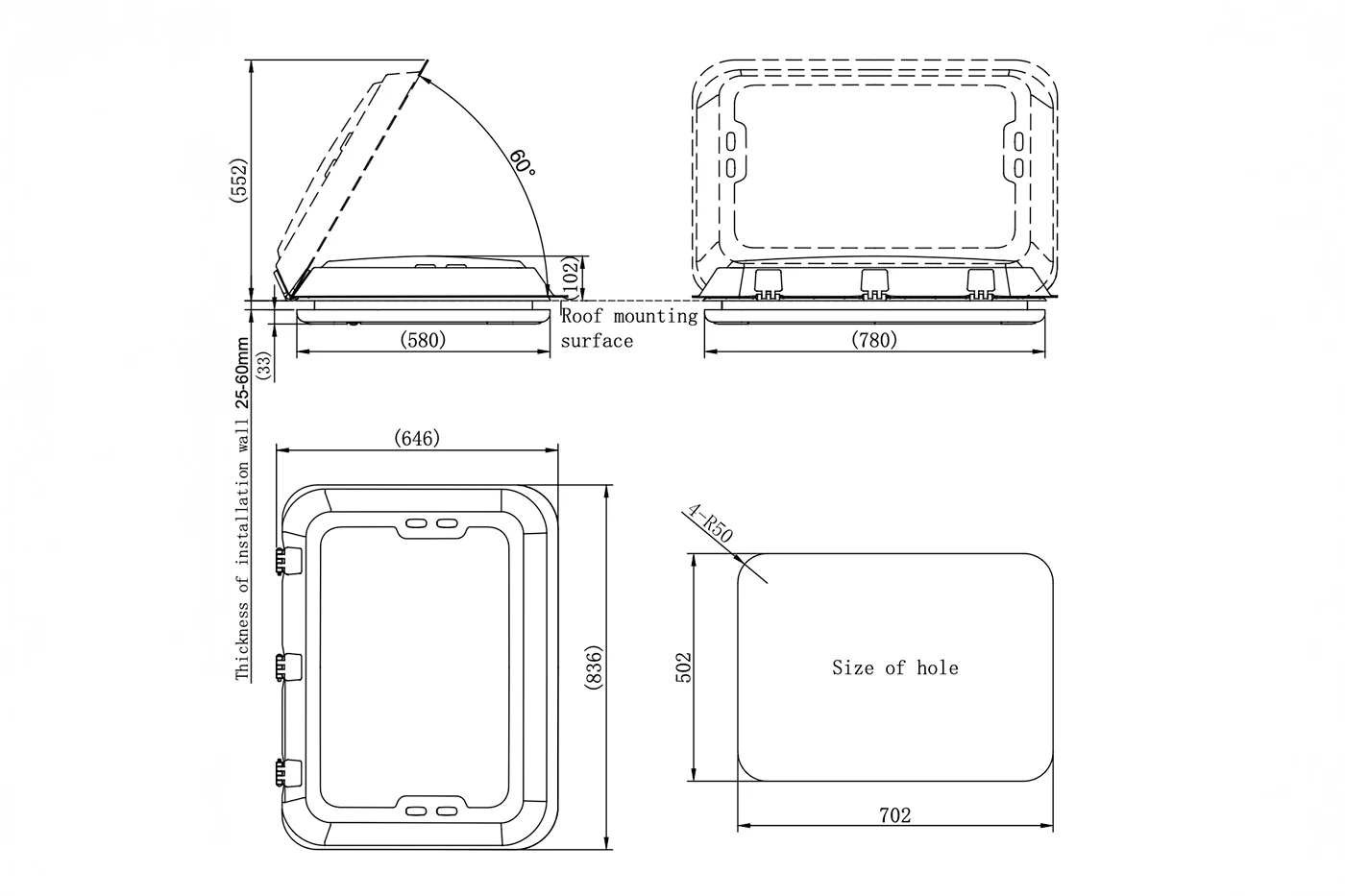

Technical Specs
Product Specs
| Spec | Details |
|---|---|
| Brand | NomadicArk |
| Cutout Size | 702 x 502 mm, about 27.6 x 19.8 in |
| Overall Exterior Footprint | 836 x 646 mm, about 32.9 x 25.4 in |
| Raised Dome Top Size | 780 x 580 mm, about 30.7 x 22.8 in |
| Open Height at 60 Degrees | 552 mm, about 21.7 in |
| Closed Height | 102 mm, about 4 in |
| Below Roof Depth Shown | 33 mm, about 1.3 in |
| Cutout Corner Radius | R50 mm, about R2 in |
| Installation Thickness | 25 to 60 mm, about 1 to 2.4 in |
| Input Voltage | 12V DC for LED version |
| Maximum Opening Angle | 60 degrees |
| Dome Material | Double-glazed acrylic |
| Frame Material | ASA |
| Color | White |
| Blind | Pleated blind included |
| Bug Screen | Pleated bug screen included |
| Operation | Manual opening with gas struts |
| Net Weight | 10 kg, 23 lb |
| Warranty | One-year manufacturer's warranty |
Installation Notes
| Spec | Details |
|---|---|
| Sealant | Sealant is required for installation and is not included |
Resources and Downloads
Frequently Asked Questions (click to expand)
This is the 700 x 500mm nominal cutout class. The manual lists the cutout size at 702 x 502 mm, about 27.6 x 19.8 in.
No. The 700 x 500mm name refers to the opening class. The manual shows the exterior footprint at 836 x 646 mm, about 32.9 x 25.4 in.
The LED version includes integrated 12V lighting. The non-LED version is the same skylight, except it does not include integrated LEDs.
Yes. This skylight includes a pleated blind and a pleated bug screen.
Yes. The skylight opens manually and uses gas struts to help support opening and closing. The listed maximum opening angle is 60 degrees.
No. The manual states to close the roof window before driving and not to open it while driving.
The listed installation thickness range is 25 to 60 mm, about 1.0 to 2.4 in. Check the manual for screw selection by roof thickness.
The manual states the roof window is only suitable for flat roofs with a maximum inclination angle of 15 degrees. For a van with roof ridges, a roof adaptor is recommended.
No. Sealant is required for installation but is not included.
A one-year manufacturer's warranty.
