Rich MEGA 200 Watt 12v Solar Panel
Overview:
The RICH SOLAR MEGA 200 Watt Solar Panel is your gateway to unparalleled solar energy efficiency. Tailored for Vans, RVs, and off-grid applications, this high-performance 12V panel is designed to give you reliable power for decades. Compare these to our Walkable Solar Panels.
With a 25-year output warranty and UL certification, it stands as a testament to reliability and quality. Mount the panels flush to our Roof Racks using the correct bracket for your van: Flush Mount Rigid Solar Brackets.
Solar Panel Features:
- Warranty: 25-year limited power output assurance
- Solar Cell Configuration: 9 buss barÂ

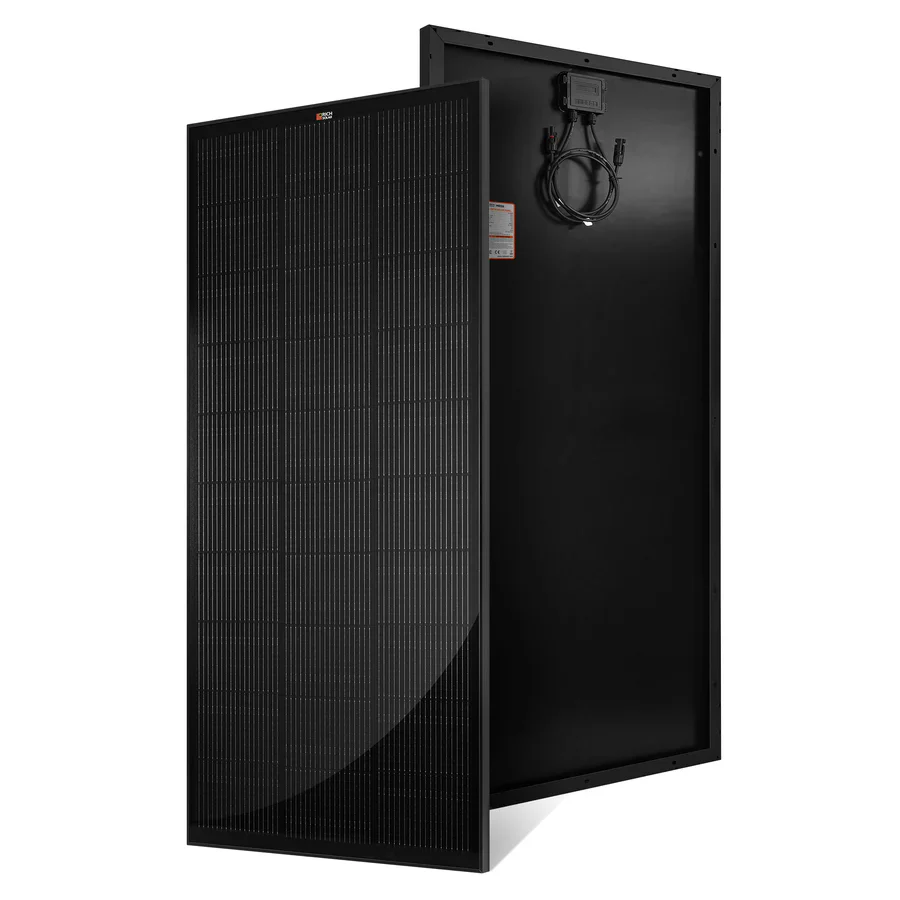

- Frame: Lightweight anodized aluminum for durability. Available in silver or black.
- Glass: High Transmission, AR Coated Tempered Glass for optimal performance

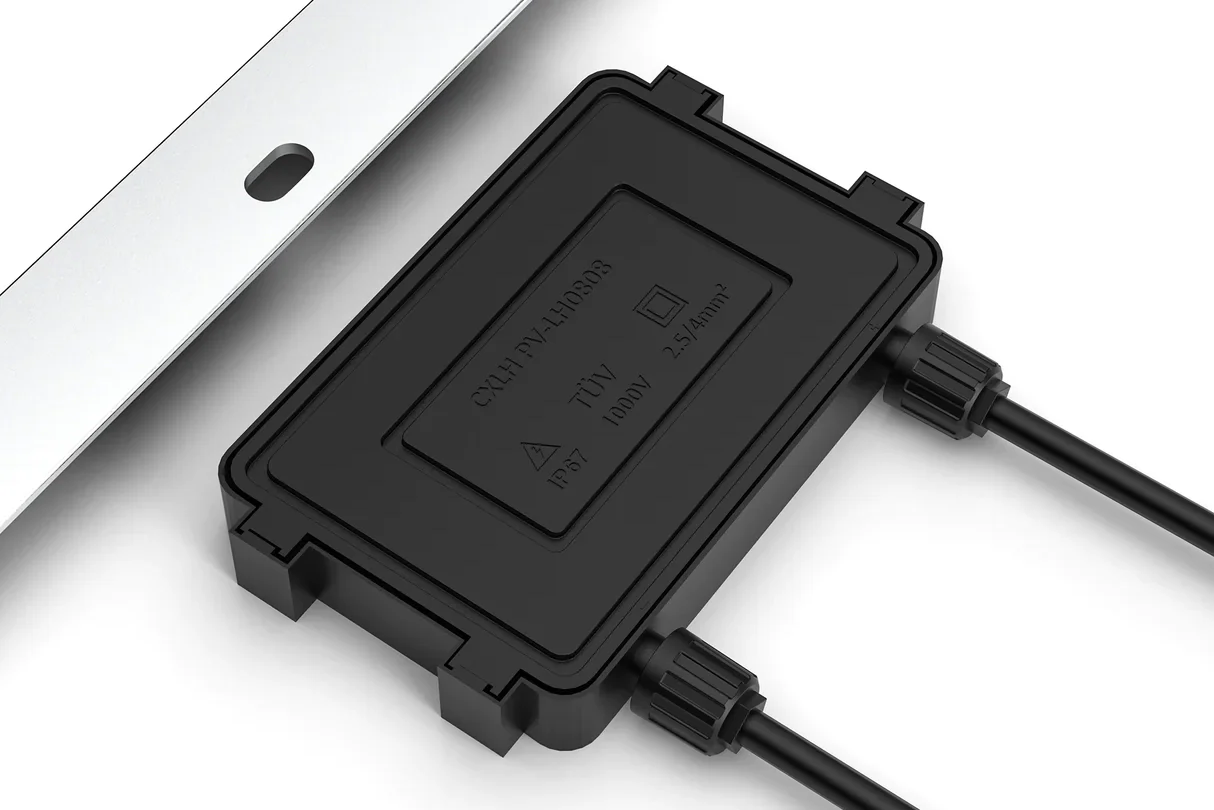

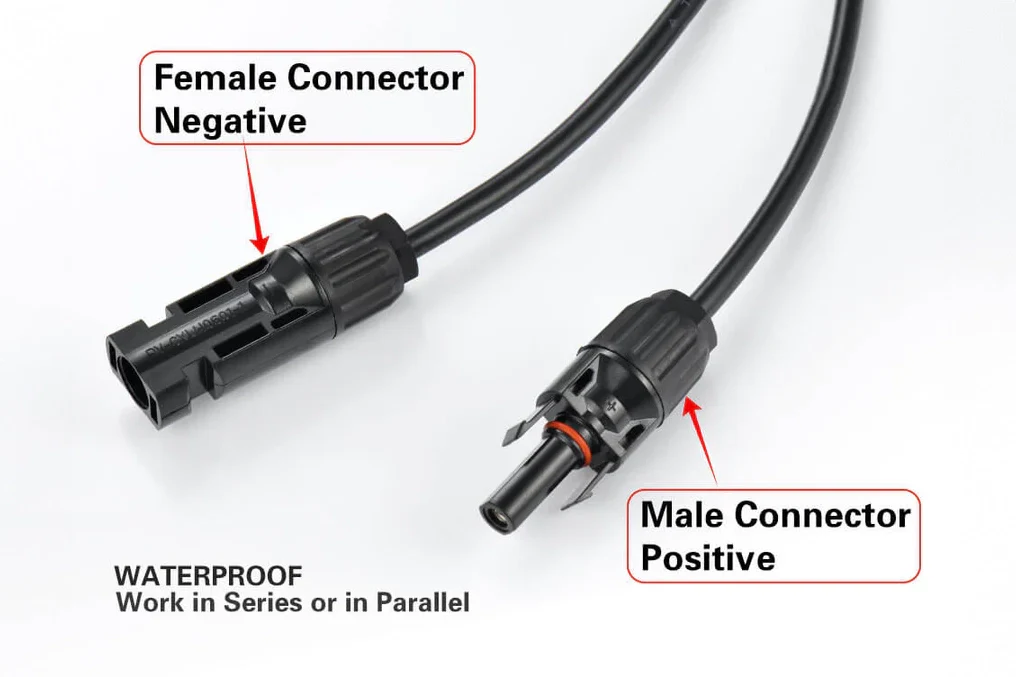

- Junction Box: Plug-and-play with industry-standard quick-connect cables
- Environmental Resilience: Certified to withstand challenging conditions
- Low Light Performance: Excellent on cloudy days, mornings, and evenings
- Waterproof Design: IP68-rated junction box and IP67-rated connectors
-
Bypass Diodes: Built-in for enhanced reliability

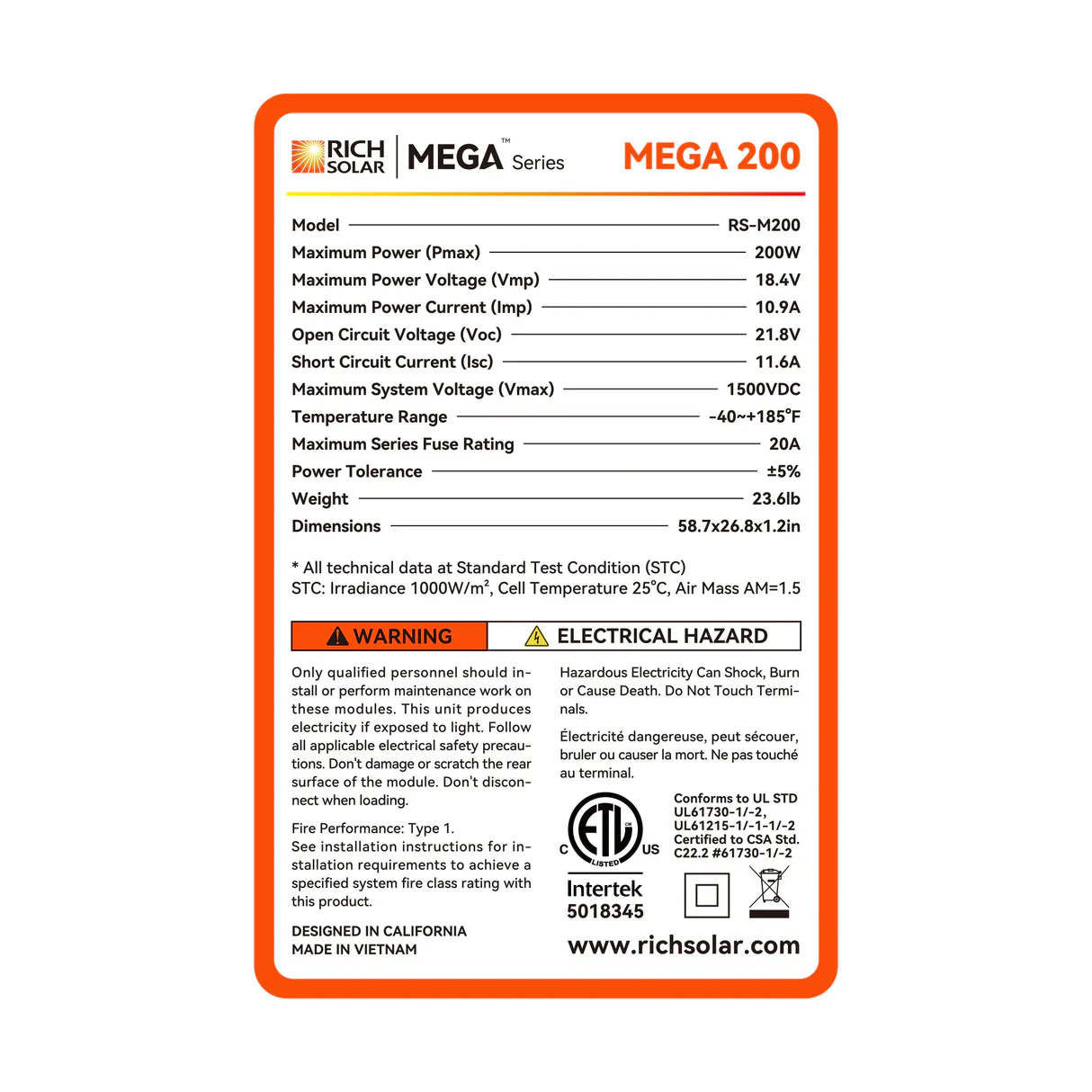

Specifications:
| Spec | Details |
|---|---|
| Maximum Power (Pmax) | 200 W |
| Maximum Power Voltage (Vmp) | 18.4 V |
| Maximum Power Current (Imp) | 10.9 A |
| Open Circuit Voltage (Voc) | 21.8 V |
| Short Circuit Current (Isc) | 11.6 A |
| Maximum System Voltage (Vmax) | 1500 VDC |
| Max Series Fuse Rating | 20 A |
| Temperature Range | -40°F to 185°F |

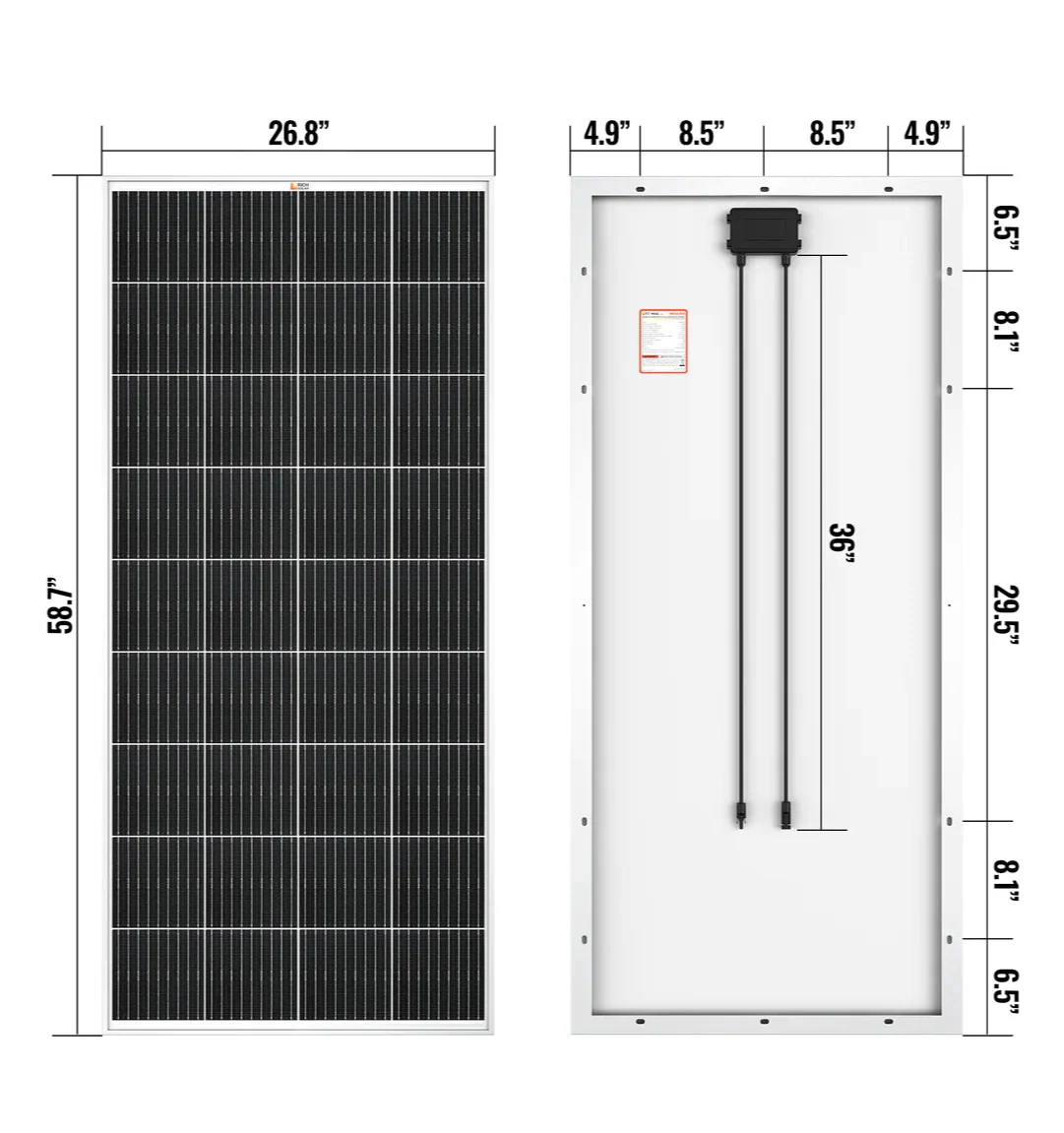

| Dimensions (L x W x D) | 58.7 x 26.8 x 1.2 in |
| Weight | 23.6 lb |
Installation:
- Ease of Installation: Simple handling for various applications
- Compatibility: Pre-drilled holes for flush-mount solar brackets
- Optimization: Pair Flush Mount Rigid Solar Brackets, along with a Stealth+ Roof Rack to flush-mount the panels to our rack for optimum performance.
- Versatility: Compatible with on-grid and off-grid inverters
Why Choose a Rich 200w Solar Panel?:
Browse other products in our Solar and Power Collection.Â
