Tetravan Folding Shower 2.1 with Magnetic Curtain
A better way to shower on the road.
The Tetravan Folding Shower 2.1 gives you a complete interior shower setup without permanently dedicating floor space to a shower stall. Fold it down when you need it, attach the magnetic zipped curtain, and fold it away when you are done. Built for camper vans, RVs, trailers, boats, and compact mobile interiors, this folding shower system combines a durable stainless shower body, pre-installed plumbing fixtures, a magnetic shower curtain, and a low-profile flush mount design. It is a strong choice for builders who want a real interior shower without building a full permanent wet bath.
Key Features
- Space-saving folding shower for vans, RVs, trailers, and boats: Designed to fold away when not in use
- Complete Shower Setup: Includes shower body, magnetic curtain + bag, shower port system, shower hose, mixer, and drain
- Flexible Install Options: Cabinet mount, bulkhead mount, or under-bed mount
- Includes a custom magnetic zipped shower curtain. Choose from: Front Entry, Right Side Entry, and Left Side Entry
- Laser-cut duplex stainless steel shower body
- Matte black mini texture powder coat finish for grip and durability
- Marine grade compression latch helps reduce road vibration

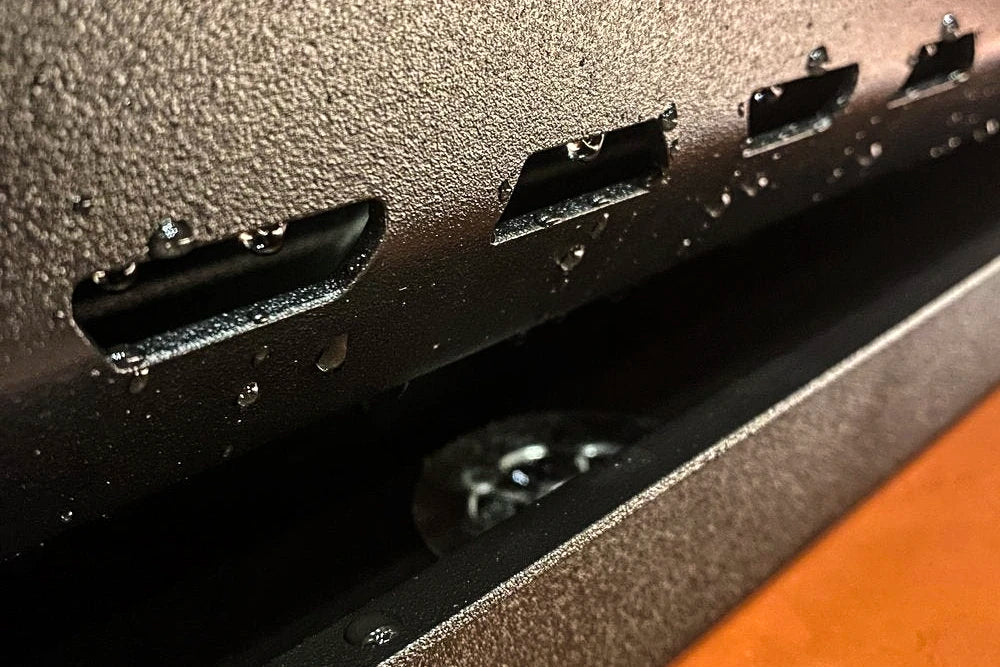

- Patent-pending drain directs water to a 2" deep trough
- Flush mount face flange for low-profile installation

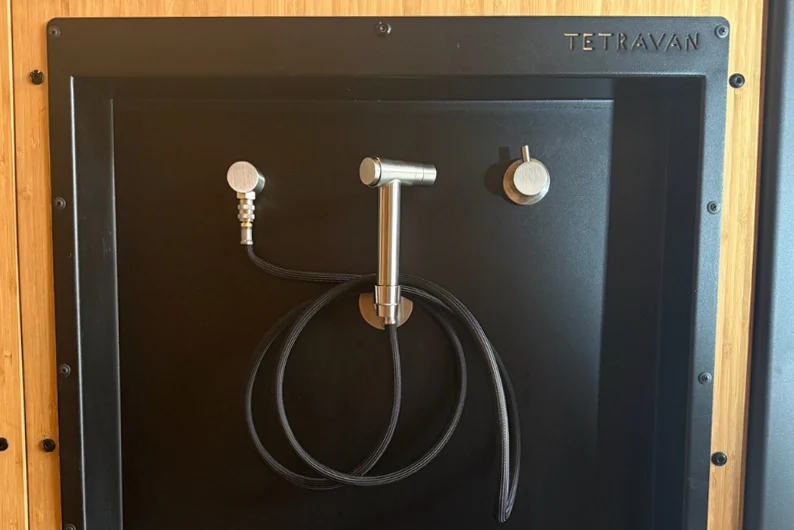

- Pre-installed stainless steel shower port system
- Free Shipping to the lower 48 states
Technical Specs
Technical Specs
| Spec | Details |
|---|---|
| Product Type | Folding shower system |
| Applications | Vans, RVs, trailers, boats, and compact mobile interiors |
| Finish | Matte black |
| Shower Material | Laser-cut duplex stainless steel |
| Finish Detail | Mini texture powder coat for grip and durability |

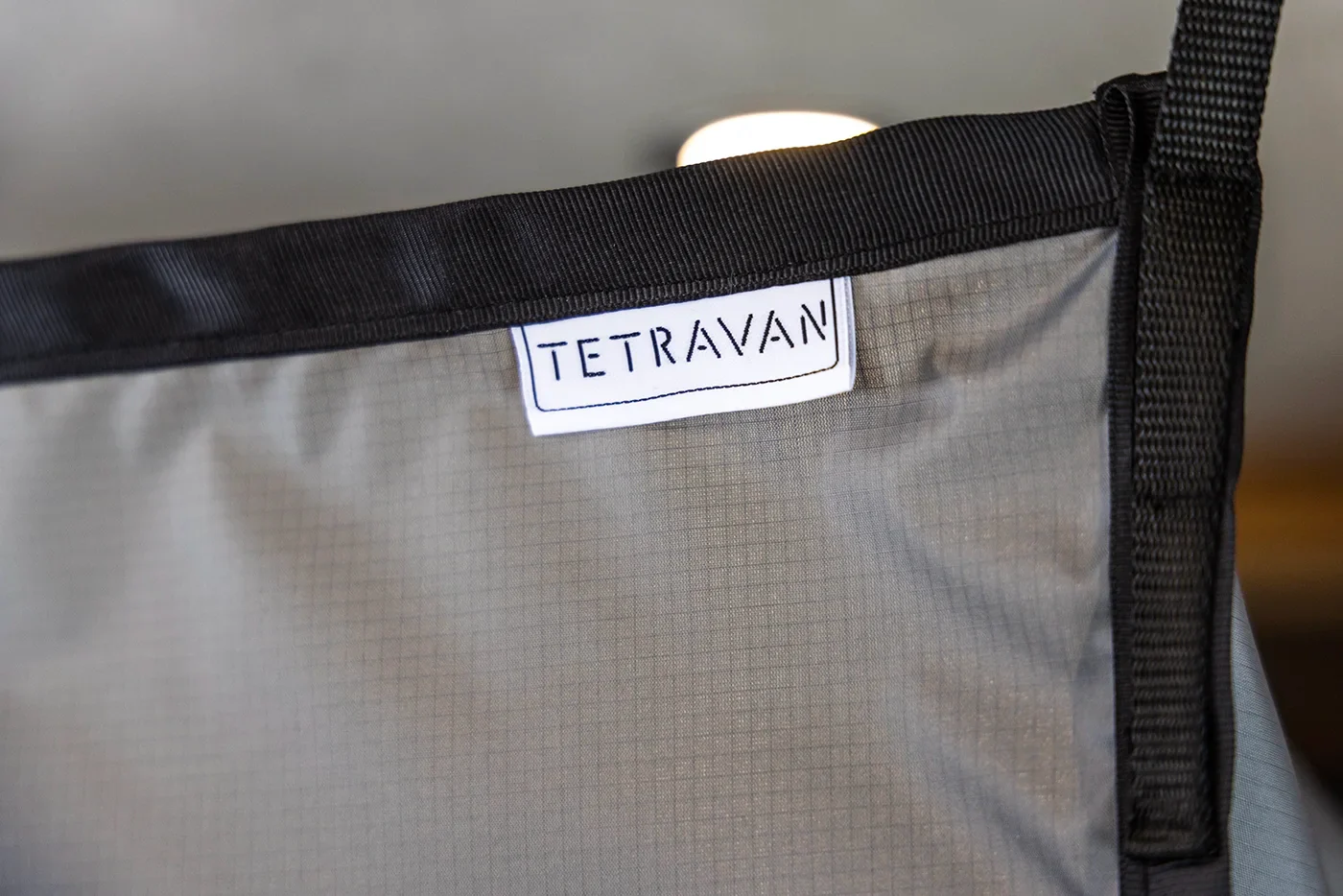

| Curtain Material | Gray waterproof nylon ripstop |
| Curtain Magnets | 3/8 in magnets sewn into lining |
| Plumbing Fixtures | Pre-installed stainless steel shower port system |
| Shower Head | Press-button stop shower head |
| Hose | Quick-release shower hose |
| Valve | Shower valve / mixer |

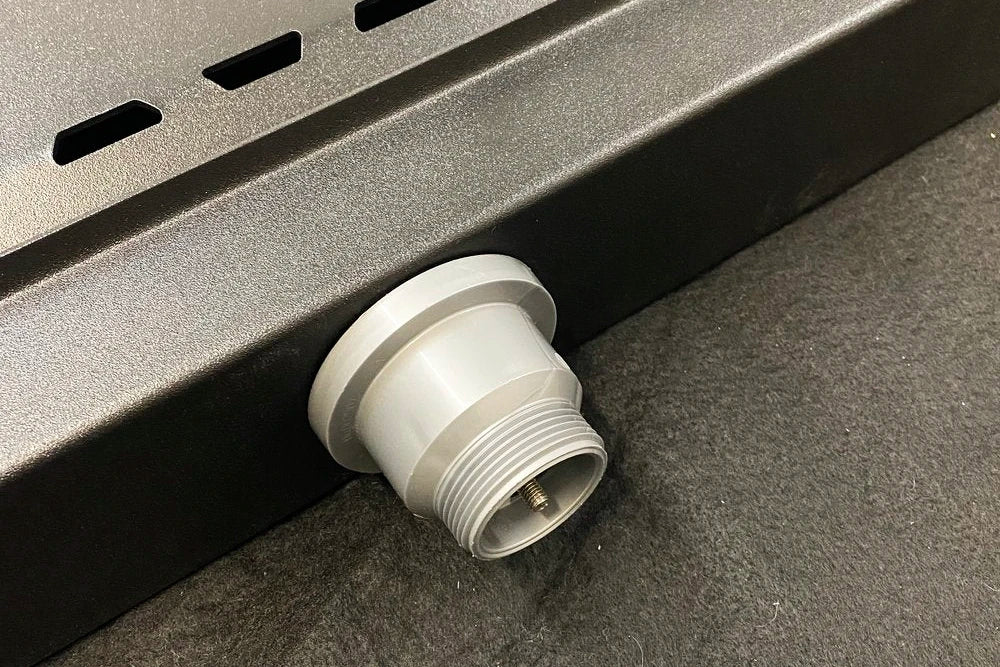

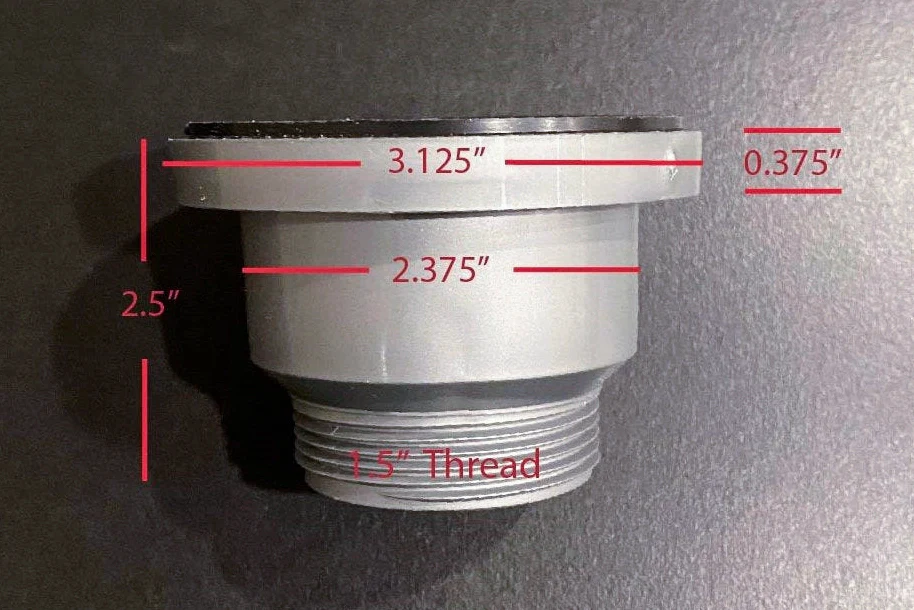

| Drain | Scandvik 1.5 in threaded straight drain |
| Hot / Cold Connections | 1/2 in NPS-F fittings |
| Drain Connection | Standard 1.5 in threaded fitting |
| Weight | 65 lb |
| Patent | U.S. Patent No. 12082755 |

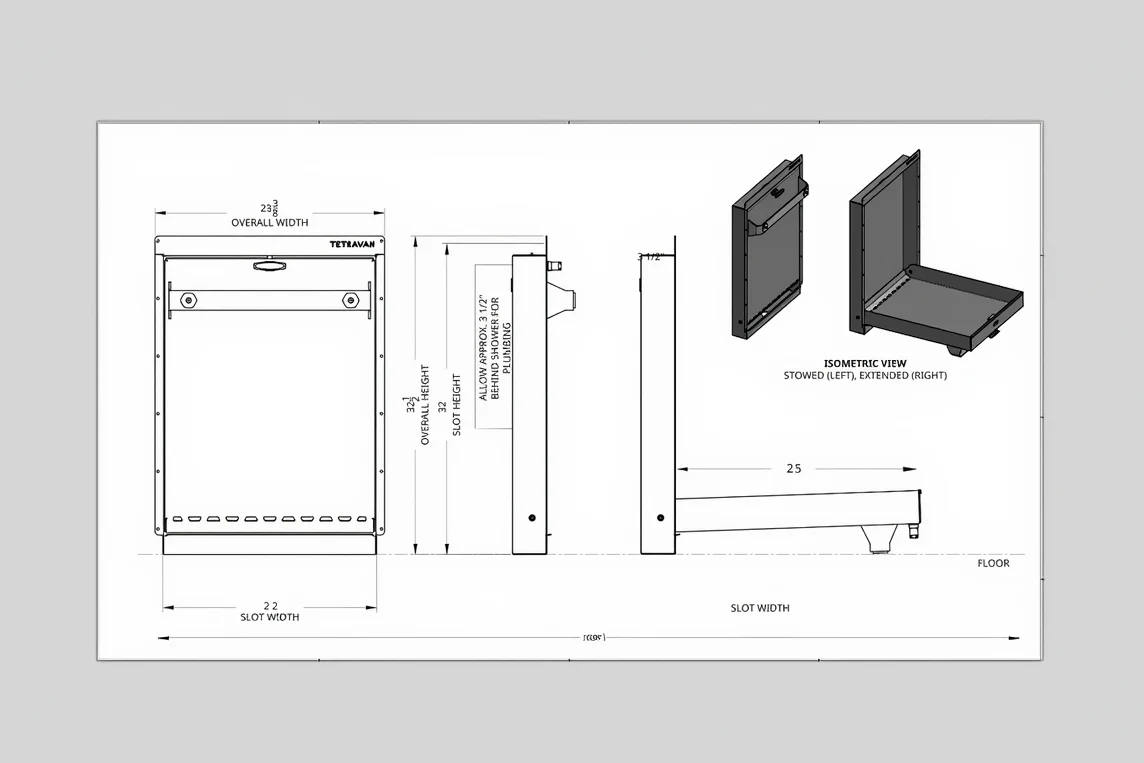

Dimensions and Installation Clearances
| Spec | Details |
|---|---|
| Nested Shower Dimensions | 21.75 in wide x 30.75 in tall |
| Shower Depth | 3.5 in |
| Rear Clearance Required | Additional 3.5" behind the back for plumbing lines and shower head / hose storage |
| Outer Flange Dimensions | 23.25 in wide x 32.5 in tall |
| Required Install Depth | About 7 in |
| Required Install Height | 32.5 in |
| Cabinet Cutout | 22 in wide x 32 in tall, starting from floor level |
| Handle Protrusion | 2.625" into living space |
| Mounting Holes | 12 x 0.25 in diameter flange holes |
| 8020 Compatibility | Compatible with 1" 8020 extruded aluminum |
What Is Included
| Item | Included |
|---|---|
| Folding shower body | Yes |
| Magnetic zipped shower curtain | Yes |
| Stainless steel shower port system | Yes, pre-installed |
| Press-button stop shower head | Yes |
| Quick-release shower hose | Yes |
| Shower head holder | Yes |
| Shower valve / mixer | Yes |
| Scandvik 1.5 in threaded straight drain | Yes |

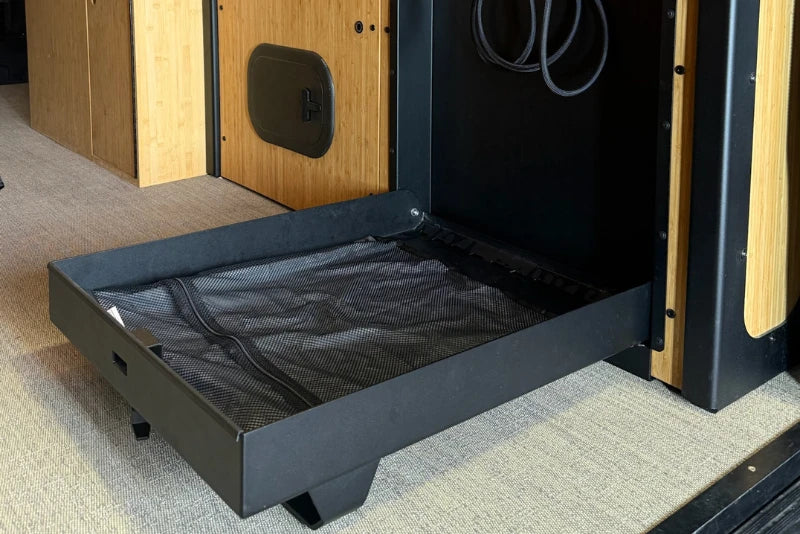

| Magnetic zipped mesh storage pouch | Yes |
Curtain Entry Options
| Option | Details |
|---|---|
| Front Entry | Curtain opening at the front when facing the shower head-on from outside the shower |
| Right Side Entry | Curtain opening is on the right side when facing the shower head-on from outside the shower |
| Left Side Entry | Curtain opening is on the left side when facing the shower head-on from outside the shower |
Common Install Layouts

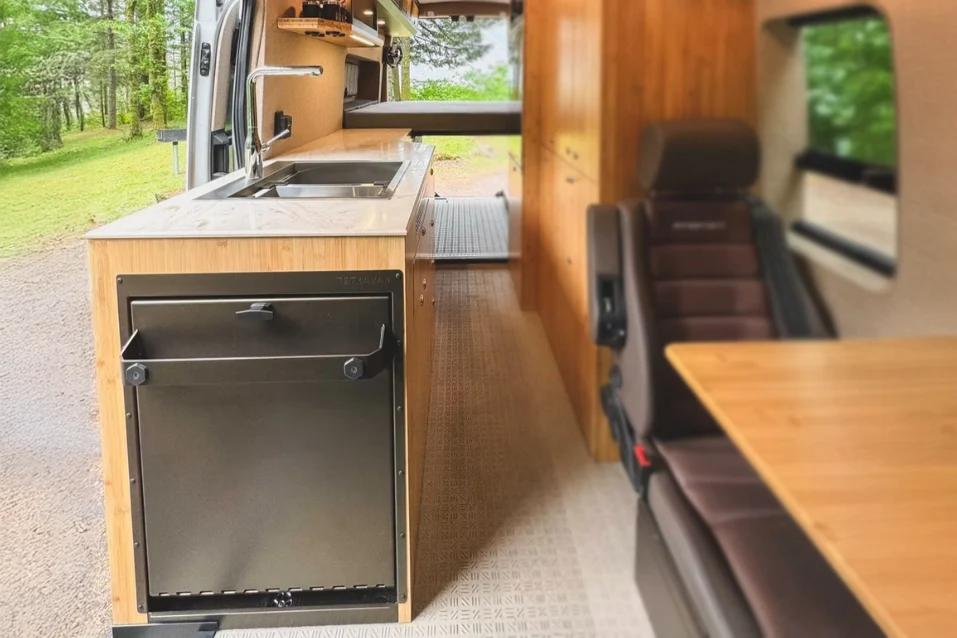

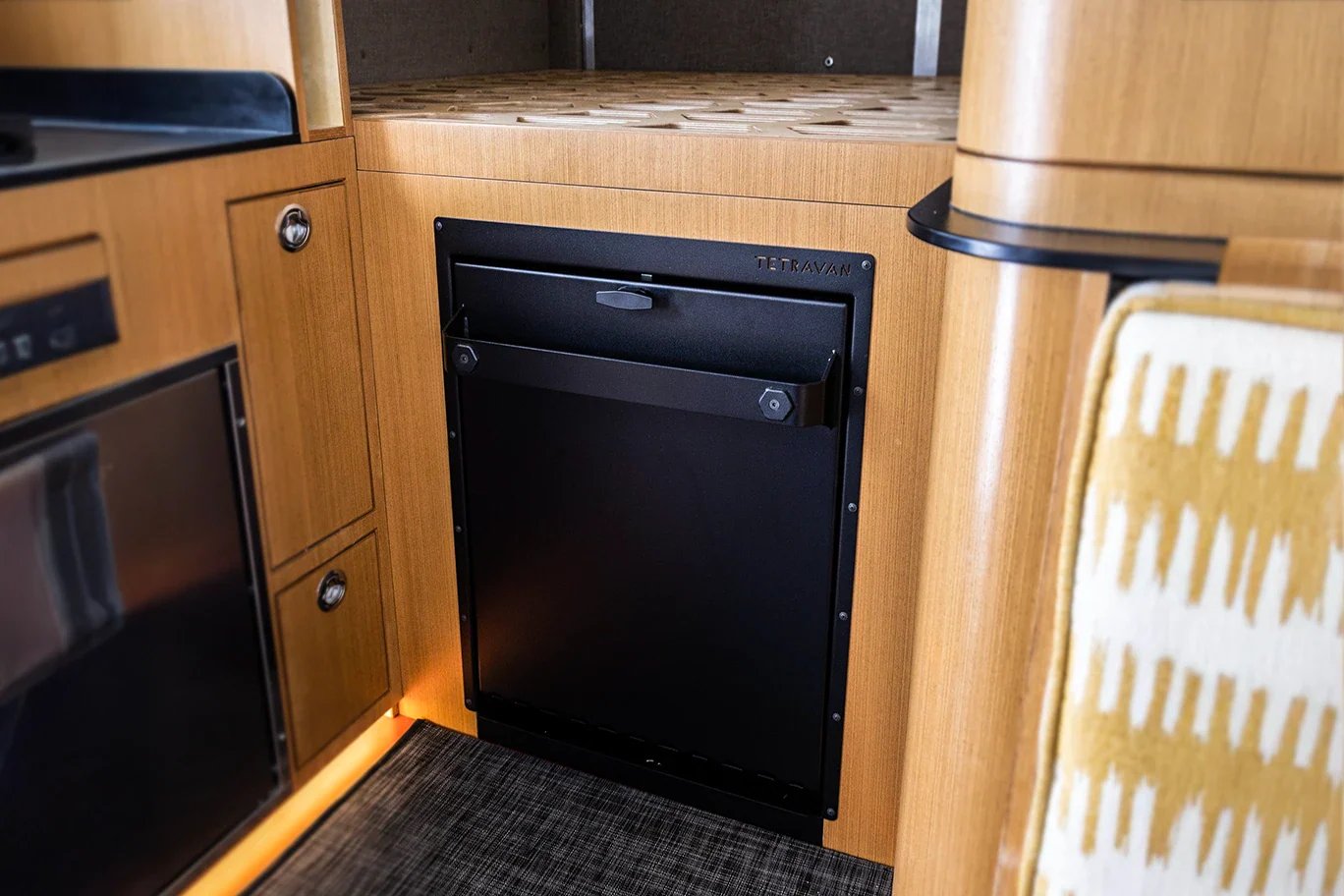

Cabinet Mount
Mount the shower onto the side of a sink cabinet. This layout can share the existing hot water supply and drain used by the sink, making it a practical option for builds that already have a galley plumbing system. When deployed, the shower uses the typically underutilized entry area of the van.

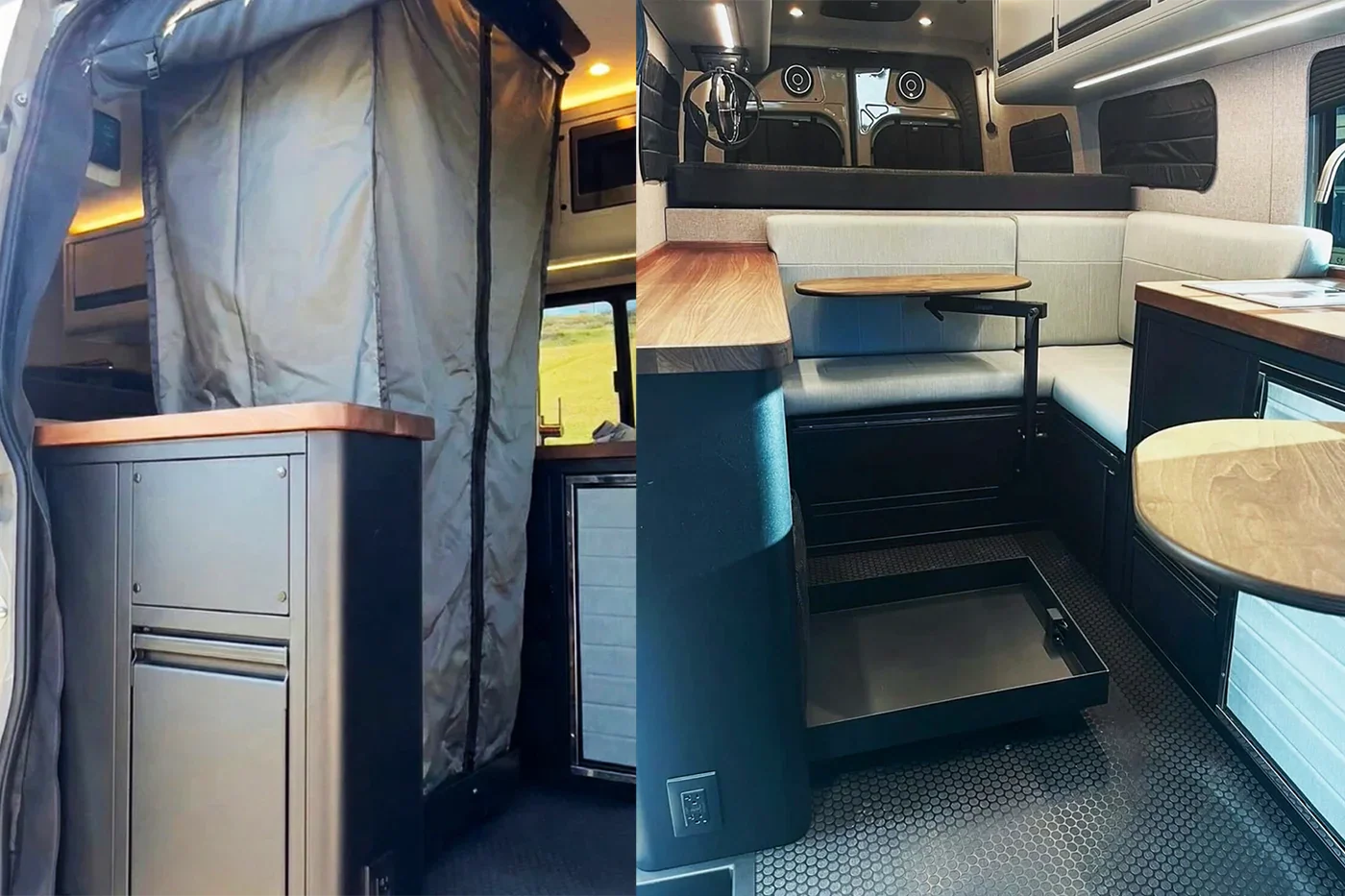

Bulkhead Mount
Mount the shower directly into an under-bed bulkhead. This layout places the shower in the tallest part of the van and can plumb directly into a hot water supply located in the garage area.

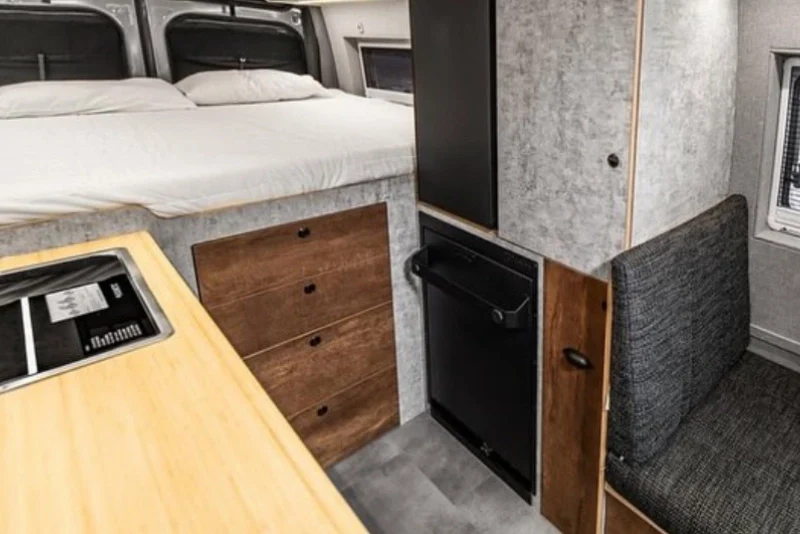

Under Bed Mount
For modular bed designs with removable panels, the shower can be installed beneath one of the panels. This keeps the shower out of sight when not in use and avoids sacrificing non-bed floor space.
Resources and Downloads
Frequently Asked Questions (click to expand)
It is a compact folding shower system designed to give vans, RVs, trailers, and boats a real interior shower without permanently dedicating floor space to a shower stall.
The kit includes the folding shower body, magnetic zipped shower curtain, pre-installed stainless steel shower port system, press-button stop shower head, quick-release hose, shower head holder, shower valve / mixer, Scandvik 1.5 in drain, and magnetic zipped mesh storage pouch.
The shower folds away when not in use, making it a practical option for compact interiors where a permanent shower stall would take up too much space.
These options refer to the location of the curtain opening when facing the shower head-on from outside the shower. Choose the entry orientation that works best for your interior layout.
The nested shower portion is 21.75 in wide x 30.75 in tall. The outer flange is 23.25 in wide x 32.5 in tall, and the cabinet cutout should be 22 in wide x 32 in tall starting from floor level.
The shower itself is 3.5 in deep, but an additional 3.5 in behind the back should be kept clear for plumbing lines and shower head / hose storage. Plan for about 7 in total depth.
Hot and cold water connections attach with 1/2 in NPS-F fittings. The drain accommodates a standard 1.5 in threaded fitting.
Common layouts include cabinet mount, bulkhead mount, and under-bed mount installations. It can be flush-mounted into a cabinet, bed-front bulkhead, or entryway depending on the build layout.
Yes. The shower drain hole must be drilled through the floor directly underneath the center of the shower gutter.
Yes. It is designed for compact mobile interiors including Sprinter, Transit, ProMaster, RV, trailer, and boat builds when the installation space and plumbing plan are appropriate.
